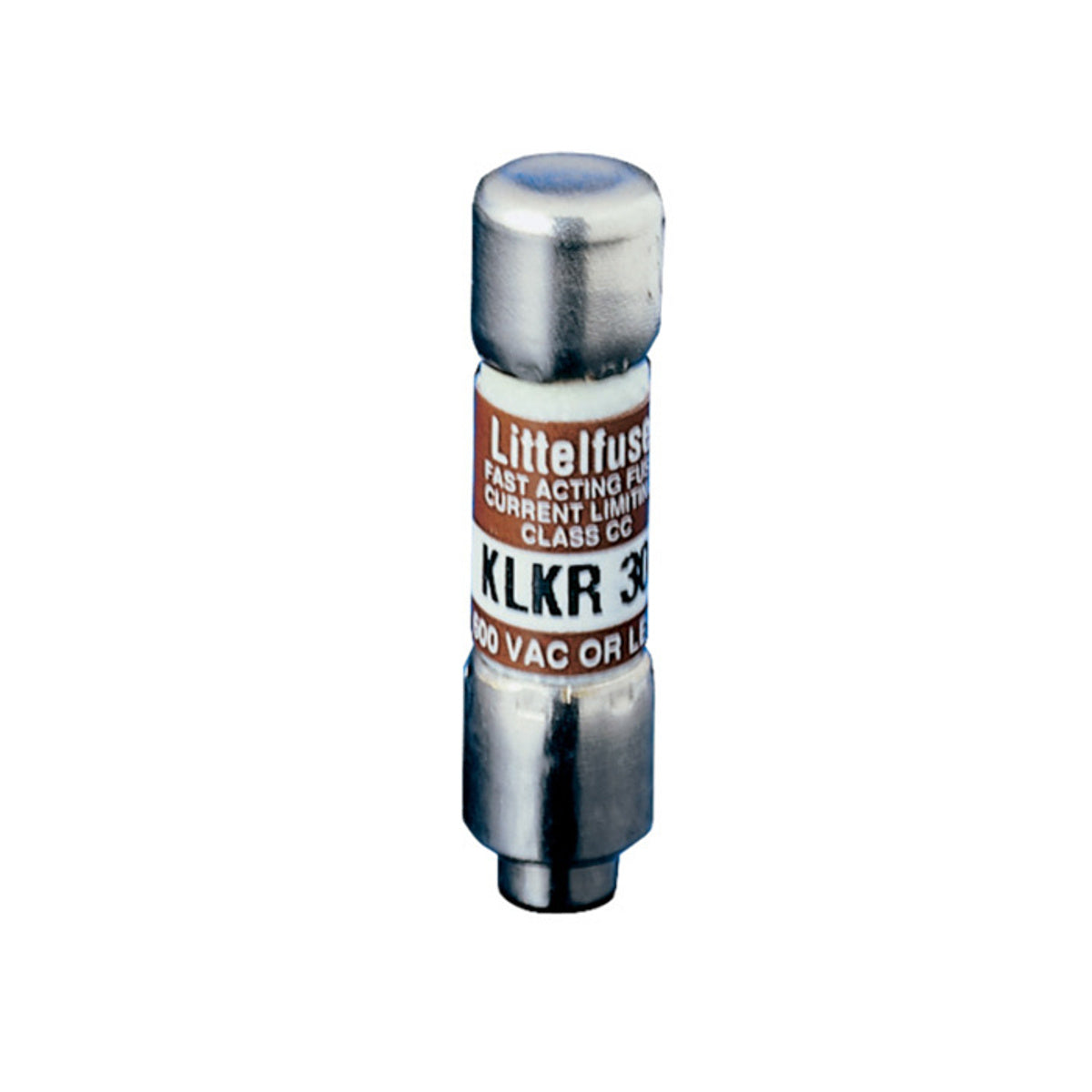

Littelfuse KLKR.300 Class CC Fuse 600V Fast Acting

Product Description

The Littelfuse KLKR.300 Class CC Fuse is designed for robust circuit protection. This 600V, 0.3A model delivers rapid response and high-current limiting to safeguard electrical setups. Ideal for use in OEM equipment and control panels, these fuses are engineered to protect solid-state devices and other sensitive electronic components.

• Compact and efficient design allows for optimal protection in tight spaces.
• Rated for both 600VAC and 300VDC applications, ensuring versatility across various electrical systems.
• Fast-acting feature reduces the risk of potential damage, reacting quickly to overcurrent conditions.

Product Highlights

Recognized under UL 248-8 and CSA Certification, the KLKR.300 model fulfills rigorous industry standards for safety and performance. With a 200kA interrupt rating at 600VAC, it stands as a highly reliable option for circuit protection.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: KLKR.300
• UPC: 079458260205

Technical Specifications

• Amperage Rating: 0.3A
• Voltage Rating: 600VAC / 300VDC
• Interrupt Rating: 200kA at 600VAC and 20kA at 300VDC
• Fuse Size: 1-1/2 inches long x 13/32 inches diameter
• Material: Melamine
• Fuse Type: Fast Acting, Class CC
• Standards: UL Listed, CSA Certified
