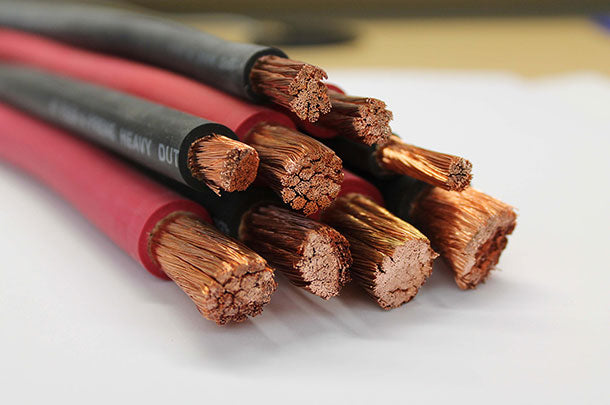

Understanding Welding Cables: Gauge, Length & Quality

In welding, even small equipment choices can determine the difference between smooth, efficient work and frustrating downtime. One of the most overlooked components is the welding cable. Many welders blame their machines for inconsistent arcs or overheating, when in reality, the cable itself is the culprit. The wrong gauge or unnecessary length adds resistance, wastes energy, and can even become a fire hazard.

If you’re working in a shop or on-site, understanding how to select the right cable will improve weld quality, extend the life of your equipment, and keep your setup safe. Let’s break it down into the three essentials: gauge, length, and quality.

What Makes Welding Cables Different?

Unlike general electrical wire, welding cables are designed for heavy-duty use in demanding environments. Their construction allows them to carry high current while remaining flexible enough to handle constant bending and dragging across rough surfaces.

A welding cable typically includes:

• Fine copper strands – ensure flexibility and strong conductivity.

• Insulation jacket – usually EPDM, neoprene, or PVC, protecting the wire from heat, abrasion, and moisture.

• 600V capacity – the industry standard, capable of powering most welding applications.

This combination allows welding cables to deliver the performance welders need without sacrificing durability.

Gauge: Matching Cable Size to Current

The first decision in choosing a cable is its gauge, the thickness of the conductor. Gauge is expressed in American Wire Gauge (AWG). The rule to remember is simple: the smaller the AWG number, the thicker the cable, and the more current it can handle.

Here’s a quick look at common sizes:

If you undersize the cable, you risk overheating, arc instability, and insulation failure. Oversizing won’t hurt performance, but it does add cost and bulk.

Length: Why It’s More Important Than Many Think

Cable length often gets overlooked, but it has a direct impact on performance. The longer the cable, the greater the resistance, and that resistance robs you of usable amperage.

Guidelines for cable length:

• 0–50 ft: Stick with the recommended gauge for your amperage.

• 50–100 ft: Increase one size up to offset resistance.

• 100–150 ft or more: Consider heavy-duty 1/0 or larger.

Always measure your total circuit length, both the electrode and the ground cable. Together, they form the complete loop that the current travels.

Quality: Not All Welding Cables Are Equal

Even with the right size and length, cable performance depends heavily on build quality. A high-quality cable can last years in tough environments, while a lower-grade one may break down within months.

Insulation Material

• EPDM: Highly flexible, weather- and heat-resistant.

• Neoprene: Excellent against cuts and abrasions.

• PVC: Stiffer, better for stationary indoor setups.

Flexibility and Strand Count

More strands of finer copper wire = higher flexibility. This is crucial for mobile welders or jobsites where cables must bend around obstacles.

Class Ratings

• Class K: Standard 30 AWG stranding, durable and affordable.

• Class M: Finer 34 AWG stranding, extra flexibility, often preferred in fieldwork.

Certifications

Look for UL, CSA, or MSHA approvals. These confirm the cable has passed rigorous safety and durability tests.

Step-by-Step: Choosing the Right Welding Cable

1. Check your machine’s maximum output amperage.

2. Measure the entire circuit length.

3. Select the proper gauge using amperage and length.

4. Consider duty cycle: longer duty cycles require thicker cables.

5. Choose insulation suited for your environment.

6. Plan ahead: if you expect to upgrade to a bigger welder, size up now.

This process ensures your cable will not only work for your current needs but also stay safe and efficient in the long term.

Mistakes Welders Should Avoid

• Using a battery cable as a substitute – it lacks the flexibility and jacket durability of true welding cable.

• Going too long “just in case” – unnecessary length increases resistance and wastes money.

• Ignoring signs of wear – small cracks or exposed copper can quickly escalate into safety hazards.

• Undersizing cables – the most common mistake, leading to overheating and equipment stress.

Safety and Care for Longer Cable Life

Even the best cable needs proper handling to deliver consistent results.

• Inspect before each use for cuts, burns, or loose connectors.

• Keep away from hot metal, sparks, and chemicals.

• Coil and store properly on reels to prevent kinks.

• Replace worn lugs or connectors promptly.

Regular care extends cable life and protects both welder and equipment.

Welding Cable Choices That Matter

In this guide, we looked at the three pillars of selecting the right welding cable: gauge, length, and quality. Getting any of these wrong can cost you in performance, safety, and equipment wear.

• Gauge: Match to amperage and circuit length.

• Length: Keep it as short as practical, and size up when the distance increases.

• Quality: Choose proper insulation, flexibility, and certification for your environment.

For welders, the right cable is not a minor detail. At Voomi Supply, professionals trust us for more than just availability. When it comes to welding cables, having the right one on hand means safer welds, smoother arcs, and less wasted time. With one of the largest selections online, we make sure the right part gets into your hands fast, so downtime never interrupts your work.
