Understanding the TXV in HVAC Systems: What It Is & Why It Matters

If you've ever looked into how your HVAC system operates efficiently, you've likely come across something called a TXV. Short for thermostatic expansion valve, this small component plays a huge role in ensuring optimal cooling performance.

Whether you're a technician or just a curious homeowner, understanding what a TXV does can help you maintain your system better and identify potential issues early on.

What Is a TXV?

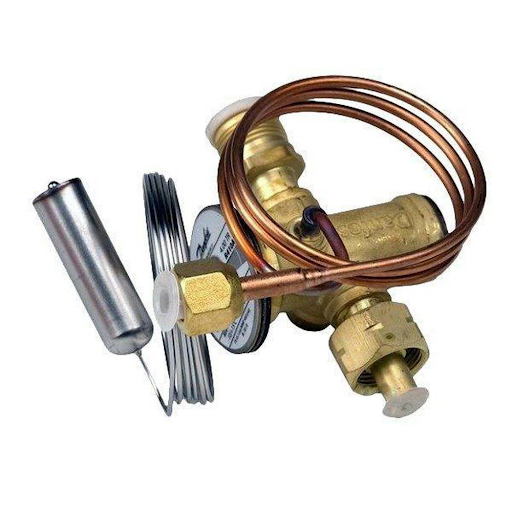

A TXV, or thermostatic expansion valve, is a precision device found in HVAC systems that regulates the flow of refrigerant into the evaporator coil. Its primary job is to control the amount of refrigerant released based on the cooling demand and temperature of the evaporator.

By managing the refrigerant flow, the TXV helps maintain the correct superheat level, which ensures the evaporator works efficiently without flooding or starving. This balance is essential for both performance and energy savings, especially in variable load conditions.

Key Components of a TXV

Before diving into how a TXV operates, it helps to understand the parts that make up this vital component. Each part works together to regulate refrigerant flow with precision.

Sensing bulb

The sensing bulb is mounted on the suction line and is filled with a charge that responds to temperature changes. It detects the temperature of the refrigerant leaving the evaporator and communicates that information to the diaphragm. This feedback loop allows the TXV to adjust refrigerant flow in real time.

Diaphragm

This flexible metal membrane sits inside the TXV body and responds to pressure from the sensing bulb. As the bulb warms up or cools down, the pressure changes cause the diaphragm to flex and adjust the flow of refrigerant accordingly. It's the part that directly opens or closes the valve to match cooling needs.

Spring

The spring inside the TXV opposes the force of the diaphragm. It provides balance and control, helping fine-tune how much the valve opens or closes based on the pressure differential.

Adjusting the spring tension allows technicians to modify the superheat setting.

Together, these components create a self-regulating valve that helps your HVAC system run smarter and more efficiently.

How Does a TXV Work?

When the HVAC system is running, the TXV continuously monitors the temperature of the refrigerant exiting the evaporator coil. The sensing bulb expands or contracts based on the temperature, sending pressure to the diaphragm inside the valve.

If the evaporator coil becomes too warm, indicating more heat needs to be absorbed, the sensing bulb increases pressure on the diaphragm, pushing the valve open to allow more refrigerant in. If it gets too cold, the pressure drops, and the valve tightens to restrict flow. This balance ensures that the coil gets just the right amount of refrigerant—never too much, never too little.

This process ensures consistent superheat levels, helping to optimize energy use and prevent system damage due to liquid refrigerant reaching the compressor.

Benefits of a TXV

Installing a TXV in your HVAC system offers numerous advantages, both in terms of efficiency and long-term reliability.

Improved energy efficiency

One of the primary reasons to use a TXV is that it can greatly reduce energy consumption. By only delivering the necessary amount of refrigerant, the system avoids waste. This leads to lower energy bills and less environmental impact, making TXVs a smart choice for eco-conscious homeowners and businesses.

Better temperature control

TXVs respond dynamically to changes in temperature and system demand. This allows for more precise cooling, reducing temperature swings inside your home or facility. The result is a more comfortable environment for occupants, especially during peak summer or winter months.

Extended equipment life

Because TXVs help regulate refrigerant flow and maintain appropriate superheat levels, they protect vital components like the compressor from wear and tear. When refrigerant levels are properly managed, your system doesn't have to work as hard, which reduces mechanical strain and extends the life of the entire HVAC unit.

Reduced risk of compressor flooding

Liquid refrigerant entering the compressor is one of the most damaging conditions for any HVAC system. TXVs help prevent this by ensuring refrigerant has enough time to evaporate before it reaches the compressor, which minimizes the risk of flooding and costly repairs.

Enhanced system performance under variable load

HVAC systems often operate under varying load conditions throughout the day. TXVs adapt to these changes on the fly, delivering consistent performance regardless of fluctuations in outdoor temperature or indoor demand. This adaptability leads to better overall system reliability and performance.

Reasons Why TXVs Fail

While TXVs are highly effective, they are not immune to failure. Understanding the common causes of failure can help you prevent issues before they impact your HVAC system.

Contamination in the system

Dirt, metal particles, or moisture can make their way into the refrigeration system during manufacturing or maintenance. These contaminants can clog the narrow passages within the TXV, leading to restricted flow or complete blockage. Over time, this results in reduced cooling capacity or even compressor failure due to insufficient refrigerant flow.

Improper installation

A poorly installed TXV can’t function correctly. For example, if the sensing bulb is mounted in the wrong location or not securely fastened, it won’t accurately sense the temperature of the refrigerant line. Likewise, incorrect insulation or orientation can cause delayed or inaccurate responses, leading to system inefficiencies or even freezing of the evaporator coil.

Bulb or diaphragm damage

Physical damage or wear and tear over time can compromise the internal components of a TXV. The sensing bulb may develop leaks, causing it to lose pressure and become ineffective. Similarly, a punctured or fatigued diaphragm won’t respond properly to pressure changes. These internal failures often result in erratic system behavior, such as fluctuating temperatures or high superheat levels.

How to Choose the Right HVAC TXV

When selecting a TXV, choosing the right model for your system is critical. Here’s how to make the right choice:

• Match the TXV size to your HVAC system’s capacity. Valves that are too large or too  small can create inefficiencies.

• Verify compatibility with your refrigerant type. For instance, not all TXVs are designed for R-410A or R-22 systems.

• Choose between externally equalized and internally equalized valves based on your evaporator design.

• Look for adjustable superheat models if your system requires fine-tuning for specific applications.

• Stick to trusted brands and verified suppliers to ensure you're getting quality parts that last.
