AC BTU Chart: BTU Requirements by Room Size & Climate

Choosing the right air conditioner involves matching your unit’s cooling power to your space. The most accurate way to do that is by understanding BTU, or British Thermal Units.
If you’ve ever wondered why some rooms feel too cold while others stay warm no matter how high you set the AC, the issue usually comes down to mismatched AC BTU capacity. Too few BTUs, and your system will struggle to cool the room. Too many, and it’ll short-cycle, wasting energy and wearing out prematurely.

Our HVAC experts help homeowners, builders, and technicians choose equipment that balances performance, comfort, and efficiency. In this guide, you’ll learn what BTU means in AC, how to calculate your needs, and how to use an AC BTU chart to make the right choice for your climate and room size.

What Is BTU in AC?

A BTU (British Thermal Unit) measures energy. More specifically, it’s the amount of energy needed to raise the temperature of one pound of water by one degree Fahrenheit. In air conditioning, BTU represents cooling power, how much heat your AC can remove from a room in one hour.

So when you see a BTU AC unit labeled as 10,000 BTU, it means that system can remove 10,000 BTUs of heat per hour from your space. Higher BTU ratings mean greater cooling capacity, but also higher energy use.

The key is balance. A 5,000 BTU unit might be perfect for a small office or bedroom, but you’ll need around 24,000 BTUs or more for large, open living areas. Oversizing your AC can cause rapid temperature swings, humidity issues, and unnecessary energy consumption, while undersizing leads to uneven cooling and system strain.

How Room Size and Climate Affect BTU Needs

When calculating your ideal cooling capacity, the room size is only half the equation. Climate, insulation, and sunlight exposure all influence how much power your unit needs.

In general, the U.S. Department of Energy recommends 20 BTUs per square foot of living space as a starting point, but that number shifts depending on your home’s conditions.

Here’s how common factors affect BTU requirements:

• Sunlight: South-facing or window-heavy rooms need 10–15% more BTUs.

• Insulation: Poorly insulated spaces require additional cooling capacity to offset heat gain.

• Ceiling height: Add roughly 10% for ceilings higher than 8 feet.

• Occupancy: Each additional person adds about 600 BTUs of needed cooling.

• Appliances: Kitchens or rooms with electronics should add 4,000–5,000 BTUs to account for heat output.

In short, it’s not enough to measure your floor space, you also need to factor in how your environment behaves throughout the day.

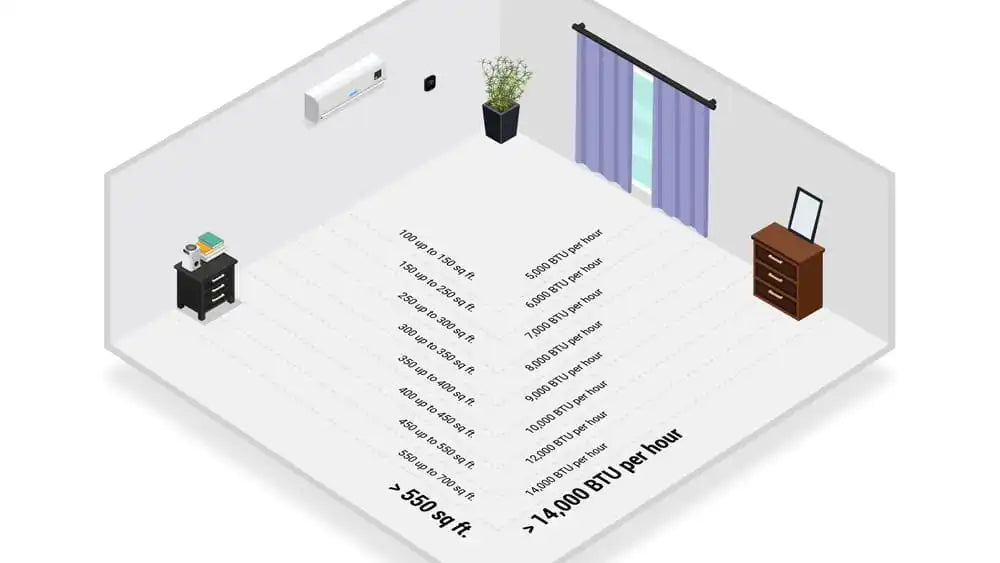

AC BTU Chart: Match Cooling Power to Room Size

The AC BTU chart below offers a general guide to matching cooling capacity with typical room sizes under average conditions.

These numbers assume a standard ceiling height and average insulation. If your home is in a hotter or more humid region, like the South or Southwest, you’ll likely need to move up one BTU category. Conversely, well-insulated northern homes may be comfortable with a slightly smaller system.

Adjusting BTUs for Different Climates

Your climate zone plays a major role in how powerful your air conditioner should be. Even the same square footage can demand drastically different BTU levels depending on where you live.

For instance:

• Cooler northern climates (Pacific Northwest, Upper Midwest): You can often choose an AC with 10% fewer BTUs than average because ambient temperatures are milder.

• Hot, dry climates (Southwest, Texas): Increase BTU capacity by 10–15% to compensate for intense heat loads.

• Humid coastal areas (Florida, Gulf Coast): Add 5–10% more BTUs, but prioritize models with strong dehumidification performance.

If you’re unsure where your region falls, a local HVAC professional, or the team at Voomi Supply, can help you evaluate the best BTU range for your location and home type.

How to Calculate the Right BTU for Your Space

While charts are helpful, no two rooms are exactly alike. You can calculate your exact needs using a simple formula:

Room square footage × 20 BTUs = base cooling requirement.

For example, if your living room is 300 square feet, the base number is 6,000 BTUs. From there, you’ll adjust for heat sources, sun exposure, and occupancy:

1. Add 10% for rooms with direct afternoon sunlight.

2. Add 4,000 BTUs for kitchens.

3. Add 600 BTUs per extra occupant beyond two people.

4. Subtract 10% for heavily shaded rooms or basements.

This calculation gives you a realistic BTU range tailored to your space. A correctly sized system maintains a stable temperature without cycling excessively or overworking.

Common Mistakes When Choosing BTU Capacity

Homeowners often assume “bigger is better,” but oversizing an air conditioner can create just as many problems as buying one that’s too small.

An overpowered unit cools the air quickly but doesn’t run long enough to remove humidity, leaving the space cold but clammy. Meanwhile, an undersized system runs continuously and still can’t maintain comfortable temperatures. Both situations waste energy and reduce system lifespan.

Here’s a quick checklist to help you avoid sizing errors:

• Don’t base your decision on square footage alone, consider ceiling height, insulation, and climate.

• Avoid using the same BTU system for every room type. Kitchens and bedrooms often need different outputs.

• Reevaluate BTU needs if you renovate, add insulation, or change window layouts.

With proper sizing, your AC can operate efficiently and evenly cool every corner of your home.

BTU Ratings and Energy Efficiency

When comparing air conditioners, you’ll often see both BTU and EER2/SEER2 ratings. BTU measures capacity, while SEER2 or EER2 measures efficiency. A system can have high BTUs but low efficiency if it consumes more power than necessary.

For most homeowners, the goal is to find the balance, enough BTUs to handle your room size but with a strong efficiency rating to keep costs manageable. High-efficiency units may cost more initially but save hundreds annually on utilities.

At Voomi Supply, we stock energy-efficient Residential AC Systems that meet or exceed current DOE standards, including models optimized for different climate zones. Whether you need a compact wall unit for an apartment or a multi-zone split system for a large home, our selection helps you achieve comfort without sacrificing efficiency.

Choosing the Right BTU for Reliable Cooling

Getting your air conditioner’s BTU sizing right is one of the smartest decisions you can make for both comfort and energy savings. At Voomi Supply, we combine deep HVAC expertise with one of the largest online selections of air conditioning equipment and hard-to-find parts. Whether you’re replacing a window unit, upgrading a central system, or outfitting a new build, our team can help you match the right BTU AC unit to your unique space and climate.

Because when your AC is properly sized, efficiency isn’t just a number, it’s a feeling you can count on every day.
