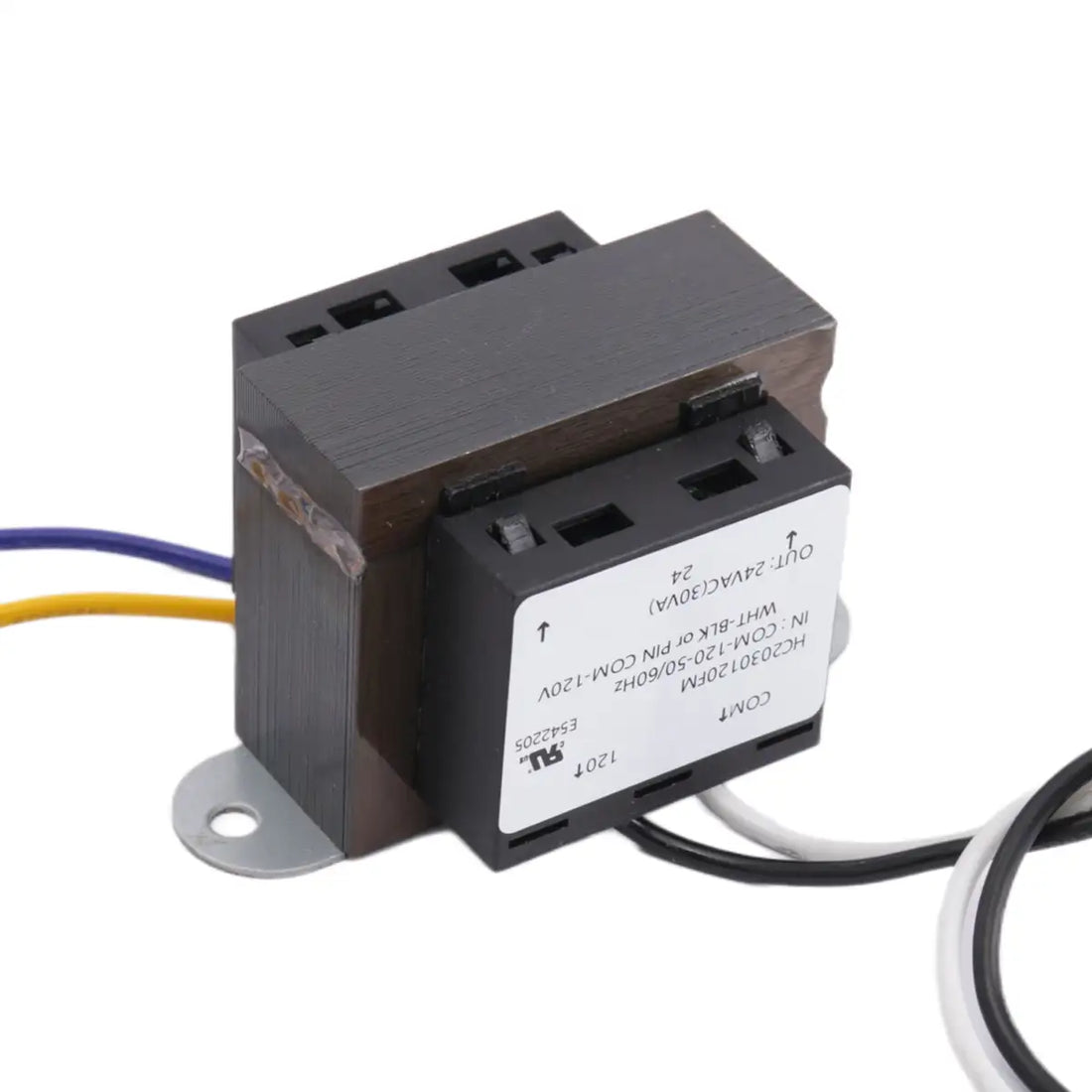

120V to 24V Transformers: How to Choose the Right One

In HVAC and industrial control systems, a 120V to 24V transformer is a safeguard for your equipment. The wrong transformer can overheat, shorten system lifespan, or cause intermittent failures that cost time and money. The right one, however, ensures stable performance, protects sensitive components, and maintains compliance with safety standards.

One crucial fact: most transformer failures in the field are caused not by manufacturing defects, but by incorrect VA sizing or mismatched input/output voltages. Professionals know that a 40 VA transformer operating at a 60 VA load is a failure waiting to happen. That’s why accurate load calculation, compatibility checks, and choosing a trusted supplier are essential.

We combine one of the largest online selections with proven industry expertise, so it’s easier to find the exact transformer you need.

How to Select the Right 120V to 24V Transformer

1. Determine Your Power (VA) Needs

Transformers are rated in volt-amperes (VA). A practical rule: sum the total VA of your connected devices and add a 20–25% buffer. For example, three 10 VA loads total 30 VA, so you’d select at least a 40 VA transformer. This buffer prevents overheating and prolongs service life.

2. Match Input & Output Voltage Requirements

Check that the transformer accepts your available supply voltage (120 V AC for most U.S. residential and light commercial settings) and delivers the required output voltage (24 V AC for most HVAC controls). Multi-tap primaries allow flexibility when working with varying supply voltages like 208 V or 240 V.

3. Mounting Style & Size

Installations in air handlers, control panels, or refrigeration systems often have space limitations. Compact transformers with foot mounts or wire-lead connections simplify installation in tight spaces and reduce service time.

4. Safety Certifications & Build Quality

UL-listed and equivalent certifications ensure the unit meets established safety standards. In demanding environments like rooftops, plant floors, or refrigeration rooms, solid build quality and insulation ratings are key to reliable performance over time.

5. Efficiency & Heat Management

Efficient transformers reduce wasted energy and run cooler, which improves component life. This is especially important for continuous-duty applications like 24/7 refrigeration control or building automation systems.

6. Environment & Application Fit

Consider ambient conditions: moisture, vibration, and dust all impact performance. If your system is in a harsh environment, opt for a transformer built to handle those stresses.

Recommended Transformers from Voomi Supply

Below are proven models from our inventory that align with these selection guidelines. Each unit is carefully chosen for professional-grade reliability.

Carrier HT680054 (40 VA)

• Specs: 120 V input to 24 V output, 40 VA capacity. Compatible with Carrier models 58CTW, 58CVA; replaces 322666-701 and other part numbers.

• Benefits: Compact, lightweight, and built for harsh conditions. Minimal power loss for optimal performance. Easy to integrate into HVAC systems.

• Best For: Carrier HVAC system maintenance and upgrades.

Mars Control Transformer MPN 50354 (40 VA)

• Specs: Multi-tap primary (120/208/240 V), 24 V output, 40 VA, UL-listed, Class II rated, foot-mount design with wire leads.

• Benefits: Flexible input options, safe, and quick to install. Ideal for technicians handling multiple system voltages.

• Best For: Versatile HVAC service work where input voltage may vary.

Scotsman SC12-2924-01

• Specs: Steps down 115 V to 12 V. Compact dimensions (2.2″ × 1.95″ × 1.95″), weight 0.9 lbs.

• Benefits: Extremely compact and easy to install in small enclosures. Reliable voltage conversion for specialized low-voltage applications.

• Best For: Tight-space repairs and replacements in compatible Scotsman models.

Hartland Controls TRAN-50VA

• Specs: Accepts 120/208/240 V AC, outputs 24 V AC, 50 VA rating.

• Benefits: Higher VA rating for heavier loads, industrial-grade durability, lightweight for easy handling.

• Best For: Industrial HVAC and control systems with larger low-voltage demands.

Micron B350BTZ13JKF (350 VA)

• Specs: Primary 230/460 V, secondary 115 V, 350 VA, 50/60 Hz, screw-terminal connections, UL/CUL approved.

• Benefits: Handles substantial loads, rugged construction for demanding applications, straightforward wiring.

• Best For: High-capacity control panels and industrial machinery.

Quick Comparison Table

Choose with Precision, Install with Confidence

Selecting the right 120V to 24V transformer is about more than voltage conversion—it’s about protecting your system’s reliability, meeting load demands, and ensuring compliance with safety standards. We’ve covered the essential selection factors:

• Sizing VA capacity with a proper safety margin

• Matching input and output voltage requirements

• Considering mounting, space, and environmental conditions

• Verifying safety certifications and build quality

The models featured here are all proven, professional-grade solutions that meet those criteria. Each offers specific advantages depending on your application, whether you’re servicing HVAC systems, building control panels, or repairing specialized equipment.

With Voomi Supply, you’re working with a partner who understands both the technical requirements and the urgency of getting the right part fast. Our transformers selection is backed by a reliable supply chain and industry expertise—so your project keeps moving, your systems stay protected, and downtime stays minimal.
