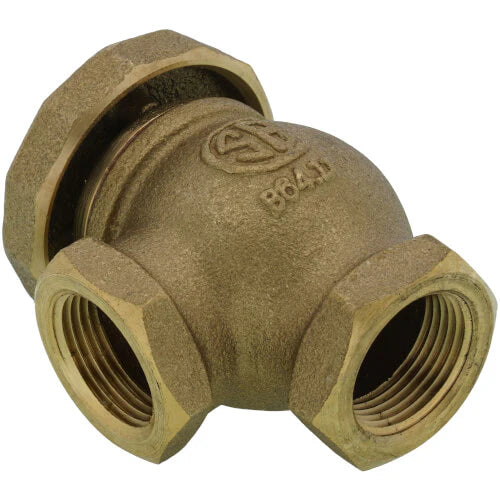

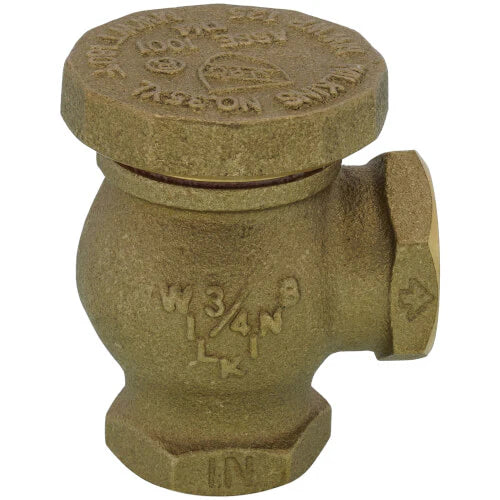

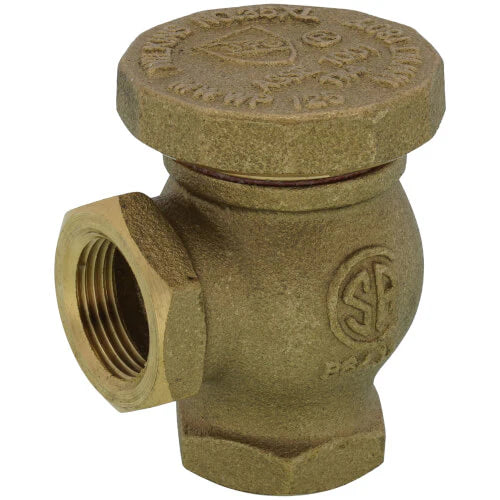

Zurn 34-35XL 3/4 35XL Atmospheric Vacuum Breaker

Product Description

The Zurn Wilkins 34-35XL Atmospheric Vacuum Breaker is designed for use in high hazard, non-continuous pressure applications. It protects against contamination of potable water by preventing backsiphonage. Made of lead-free cast bronze, this valve is lightweight and durable, suitable for irrigation and laboratory purposes.

• Prevents backsiphonage in non-continuous pressure applications.
• Constructed from lead-free cast bronze for safety.
• Maximum working pressure of 125 psi and temperature of 180 degrees Fahrenheit.

Product Highlights

The 34-35XL combines durability and efficiency for reliable operation in various plumbing applications.

Product Information

Standard Information

• Brand: Zurn Wilkins
• Part Number: 34-35XL

Technical Specifications

• Size: 3/4 inch
• Type: Atmospheric Vacuum Breaker
• Weight: 27 lbs
• Height: 17.5 inches
• Width: 14 inches
• Length: 15.5 inches
• Connection Size: 3/4 x 3/4 inch
• Lead-Free Compliance: Yes
• ASSE Standard: ASSE 1001
• Max Pressure: 125 psi
• Max Temperature: 180°F
