Product Description

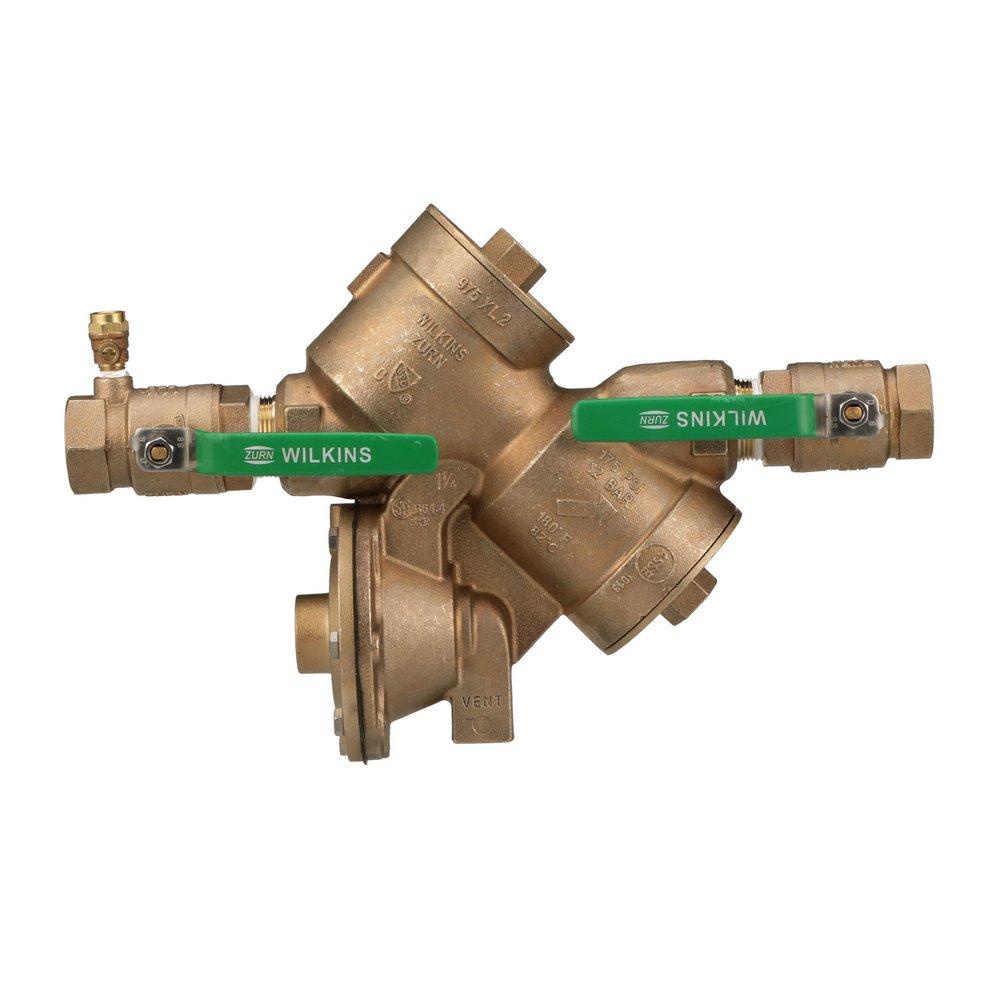

Zurn Wilkins model 114-975XL2 is a cast bronze FNPT backflow preventer designed for potable water lines to protect against both backsiphonage and backpressure of contaminated water into the potable water supply.
- Easy inline serviceability with separate access to each check valve and the relief valve.
- Pre-assembled with backflow, pressure regulation, and strainer components for simplified repairs.
- Compliant with low-lead laws and numerous industry standards including ASSE and IAPMO listings.
Product Highlights
The Zurn Wilkins 114-975XL2 offers high-hazard protection, thanks to its robust wye-pattern bronze body and design that enables labor cost savings due to short lay length.
Product Information
Standard Information
-
Material: Cast Bronze, ASTM B584
-
Connection Type: FNPT
-
Pressure Rating: 175 psi WWP
-
Temperature Rating: up to 180 degrees Fahrenheit
Technical Specifications
-
Compliance: ASSE 1013, CSA B64.4, AWWA C511, ANSI/NSF 61
-
Dimensions: 17 inches L x 4-1/4 inches W x 11-3/4 inches H
-
Standards/Certifications: UL, IAPMO, FDA approved materials
