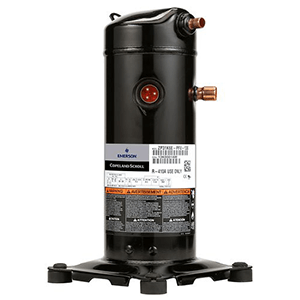

York S1-01504618004 Scroll Compressor 31300 Btu/hr 208/230 VAC R-410A

Product Description

The York S1-01504618004 is a reliable scroll compressor designed for residential applications. This unit operates at a cooling capacity of thirty-one thousand two hundred Btu per hour, making it suitable for various air conditioning needs. It utilizes R-410A refrigerant and offers efficient performance with up to ten point five Energy Efficiency Ratio (EER).

• Rated for 208/230 VAC power supply
• Temperature and pressure resistant
• Permanent split capacitor for efficient starting

Product Highlights

This scroll compressor features fixed capacity technology that meets minimum efficiency standards and enhances performance compared to older models.

Product Information

Standard Information

• Brand: York
• Model Number: S1-01504618004

Technical Specifications

• Amperage Rating: 17.1 A Rated Load, 83.9 A Locked Rotor
• BTU Rating: 31300 Btu/hr
• EER: Up to 10.5
• Frequency Rating: 60 Hz
• HP Rating: 1 - 5 hp
• Oil Type: 3MA Polyol Ester (POE)
• Phase: 1 ph
• Refrigerant: R-410A
• Tonnage: 2-1/2 ton
• Voltage Rating: 208/230 VAC
