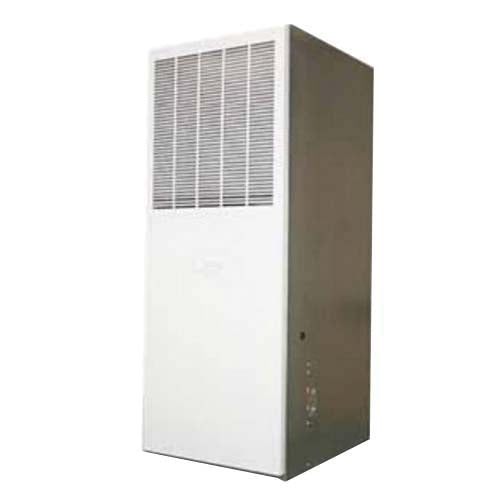

York EBE20A Electric Furnace 67000 Btu/hr 240 VAC

Product Description

The York EBE20A is an electric furnace designed to provide efficient heating in manufactured and modular homes. This model delivers a heating capacity of sixty-seven thousand BTU per hour and operates at two hundred forty volts.

• Dual functionality as an air handler and electric furnace.
• Zero clearance installation option.
• Multi-speed blower suitable for heating and cooling.

Product Highlights

The York EBE20A serves as both an air handler and a furnace, making it versatile for various heating requirements.

Product Information

Standard Information

• Brand: York
• Part Number: EBE20A

Technical Specifications

• Amperage Rating: 83.8 A
• BTU Rating: 67000 Btu/hr
• CFM Rating: 1607 cfm at 0.1 in-WC
• Configuration: Downflow
• Connection Type: #6 Ground Wire
• Dimension: 24 inches W x 51.625 inches H x 19.625 inches D
• Filter Size: 16 x 20 x 1 inches Top Unit, 20 x 20 x 1 inches Louvered Door Only
• Frequency Rating: 60 Hz
• HP Rating: 1/2 hp
• Item Name: Electric Furnace
• Motor Type: ECM
• Nominal Capacity: 4 ton
• Phase: 1 ph
• Series: EBE
• Voltage Rating: 240 VAC
• Wattage: 19.6 kW
• Standards/Certifications: UL, cUL listed, ISO 9001 standard
• Applications: For air conditioning and heat pump applications
