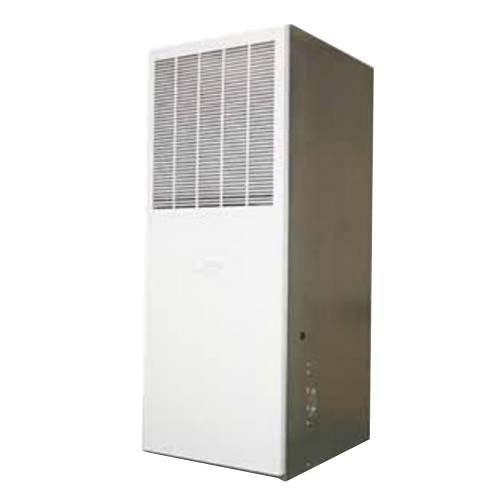

York EBE17A Electric Furnace 56000 Btu/hr 240 VAC

Product Description

The York EBE17A is an electric furnace designed for efficient heating in manufactured homes and modular units. As part of a dual system, this product functions as both an air handler and a furnace. It provides airflow for air conditioning and heat pump systems while maintaining effective heating capabilities.

• Zero clearance feature for tight installations
• Multi-speed blower for optimal airflow
• Built-in coil cabinet design for compatibility with heat pumps

Product Highlights

Designed for air conditioning and heat pump applications, the York EBE17A supports multi-speed operation with specific heating capacities to meet various needs.

Product Information

Standard Information

• Brand: York
• MPN: EBE17A

Technical Specifications

• Amperage Rating: 70.4 A
• BTU Rating: 56000 Btu/hr
• CFM Rating: 1607 cfm at 0.1 in-WC
• Configuration: Downflow
• Connection Type: #8 Ground Wire
• Dimension: 24 inches W x 51-5/8 inches H x 19-5/8 inches D
• Filter Size: 16 x 20 x 1 inches Top Unit, 20 x 20 x 1 inches Louvered Door Only
• Frequency Rating: 60 Hz
• HP Rating: 1/2 hp
• Nominal Capacity: 4 ton
• Phase: 1 ph
• Series: EBE
• Voltage Rating: 240 VAC
• Wattage: 16.4 kW
• Standards/Certifications: UL, cUL listed, ISO 9001 standard
• Applications: For air conditioning and heat pump applications
