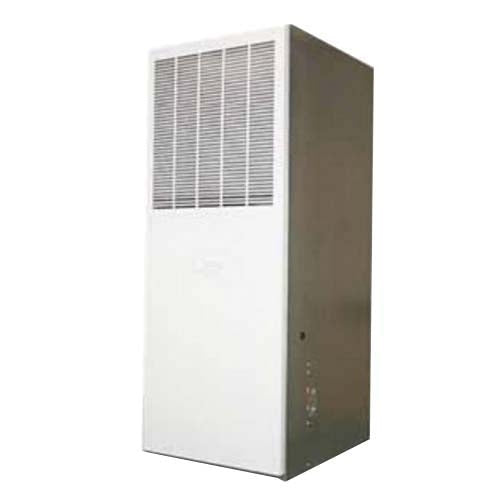

York EBE10A Electric Furnace 34000 Btu/hr 240 VAC 10 kW

Product Description

The York EBE10A is an electric furnace with a heating capacity of 34000 BTU per hour, designed to efficiently operate at 240 volts. This unit serves two functions: it acts as an air handler for air conditioning systems and as an electric furnace for heating needs. It is suitable for various applications, particularly in manufactured and modular homes.

• Zero clearance installation option for tight spaces.
• Built-in coil cabinet integrates with EBE units and heat pumps.
• Multi-speed blower for effective cooling and heating operations.

Product Highlights

Versatile and efficient, the York EBE10A can easily adapt to different HVAC setups.

Product Information

Standard Information

• Brand: York
• Part Number: EBE10A

Technical Specifications

• Amperage Rating: 43.8 A
• BTU Rating: 34000 Btu/hr
• CFM Rating: 1607 cfm at 0.1 in-WC
• Configuration: Downflow
• Connection Type: #10 Ground Wire
• Dimensions: 24 inches W x 51-5/8 inches H x 19-5/8 inches D
• Filter Size: 16 x 20 x 1 inches in Top Unit, 20 x 20 x 1 inches in Louvered Door Only
• Frequency Rating: 60 Hz
• HP Rating: 1/2 hp
• Motor Type: ECM
• Nominal Capacity: 4 ton
• Phase: 1 ph
• Series: EBE
• Voltage Rating: 240 VAC
• Wattage: 10 kW
