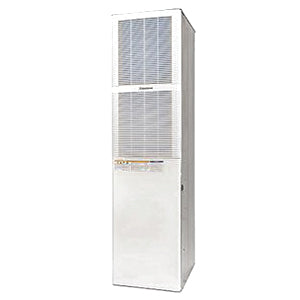

York DGAX090BDTA Sealed Combustion Gas Furnace 80% 90 mbh Input 72 mbh Output

Product Description

The York DGAX090BDTA is a sealed combustion gas furnace designed for efficiency and performance. This unit operates with an annual fuel utilization efficiency (AFUE) of eighty percent.

• Handles up to four tons of cooling.
• Equipped with a zero clearance feature for tight spaces.
• Easy conversion to propane gas.

Product Highlights

The DGAX series combines a powerful air handler with a gas furnace, achieving optimal heating for manufactured homes.

Product Information

Standard Information

• Brand: York
• Manufacturer: York

Technical Specifications

• AFUE: 80%
• BTU Rating: 90 mbh Input, 72 mbh Output
• CFM Rating: 1305 cfm
• Configuration: Downflow
• Connection Type: 1/2 in NFPT Gas
• Dimensions: 19-1/2 in W x 76 in H x 24-3/4 in D
• Filter Size: (2) 16 x 20 x 1 in
• Frequency Rating: 60 Hz
• Fuel Type: Natural Gas
• HP Rating: 1/3 hp
• Ignition Type: Automatic Hot Surface
• Model: DGAX
• Motor Type: PSC
• Phase: 1 ph
• Voltage Rating: 115 VAC
• Temperature Rating: 165 deg F Maximum Outlet Air, 45 - 75 deg F Rise Air
• Standards/Certifications: AHRI and CSA certified, ISO 9001 standard
