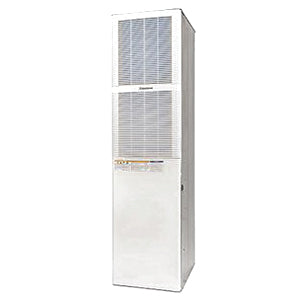

York DGAX070BDTA Downflow Sealed Combustion Gas Furnace 80% 70 mbh Input 56 mbh Output

Product Description

The York DGAX070BDTA is a downflow sealed combustion gas furnace designed for energy efficiency and effective heating. This furnace offers an AFUE of eighty percent with an input of seventy mbh and an output of fifty-six mbh. It is appropriate for manufactured homes.

• Zero clearance feature for space-constrained areas
• Dual functionality as an air handler and gas furnace
• Built-in coil cabinet compatible with Coleman heat pumps

Product Highlights

York furnaces provide energy efficiency through advanced design and technology.

Product Information

Standard Information

• Brand: York
• Part Number: DGAX070BDTA

Technical Specifications

• AFUE: 80%
• BTU Rating: 70 mbh Input, 56 mbh Output
• CFM Rating: 1305 cfm
• Configuration: Downflow
• Connection Type: 1/2 in NFPT Gas
• Dimension: 19-1/2 in W x 76 in H x 24-3/4 in D
• Filter Size: (2) 16 x 20 x 1 in
• Frequency Rating: 60 Hz
• Fuel Type: Natural Gas
• HP Rating: 1/3 hp
• Ignition Type: Automatic Hot Surface
• Model: DGAX
• Motor Type: PSC
• Phase: 1 ph
• Temperature Rating: 165 deg F Maximum Outlet Air, 45 - 75 deg F Rise Air
• Voltage Rating: 115 VAC
