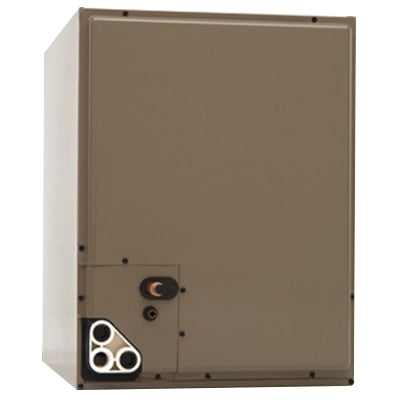

York CM42CBCA1 Add-On Indoor Coil 3.5 ton

Product Description

The York CM42CBCA1 is a 3.5 ton add-on indoor coil designed for use with UPG furnaces and modular air handlers. This full-cased coil provides flexible installation options, including multi-position setups for optimal functionality. The unit is constructed from heavy gauge galvanized steel, enhancing its durability and resistance to corrosion.

• Multi-position installation capability.
• Factory-installed electronic expansion valves available.
• Low leakage design minimizes air loss.

Product Highlights

The CM42CBCA1 features MaxAlloy aluminum coils designed for long-term efficiency and reliability. It is suitable for split-system cooling and heat pump applications.

Product Information

Standard Information

• Brand: York
• Manufacturer: York

Technical Specifications

• Air Flow Direction: Multi-Position
• CFM Rating: 1400 cfm
• Coil Rating: 7.84 sq-ft Face Area, 2 Rows, 14 fins/in
• Coil Size: (3) 22 x 17.1 inches
• Connection Type: 3/8 inch Sweat Liquid, 7/8 inch Sweat Vapor
• Dimensions: 21 inches W x 27 inches H x 21-1/2 inches D
• Finish: Galvanized
• Item Name: Add-On Indoor Coil
• Material: Steel
• Model: CM42C
• Nominal Capacity: 3.5 ton
• Refrigerant: R-410A, R-22
• Series: CM
• Type: Full-Cased
