Product Description

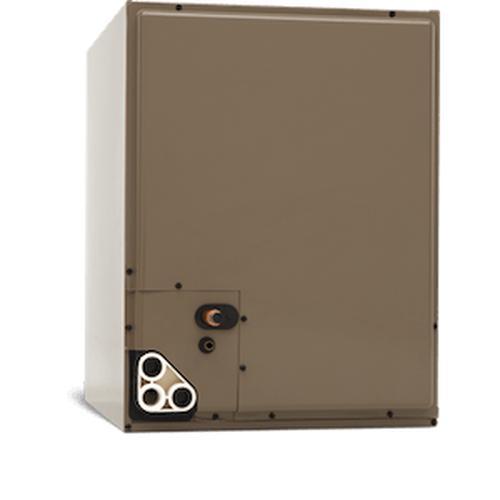

The York CM24ABAA1 is an add-on indoor coil designed for efficient heating and cooling. It features a multi-position installation capability, allowing versatility in setup. This full-cased coil is made from galvanized steel for durability and corrosion resistance.
- MaxAlloy aluminum coils for enhanced efficiency.
- Factory-installed TXV for optimal refrigerant flow.
- Compact design for space-constrained applications.
Product Highlights
This coil is certified to meet AHRI standards and is suitable for split-system cooling and heat pump applications.
Product Information
Standard Information
-
Brand: York
-
Type: Full-Cased
Technical Specifications
-
Model: CM24A
-
Nominal Capacity: 2 ton
-
Air Flow Direction: Multi-Position
-
CFM Rating: 800 cfm
-
Coil Size: (3) 14 x 17.1 inches
-
Connection Type: 3/8 inch Sweat Liquid, 3/4 inch Sweat Vapor
-
Dimensions: 14-1/2 inches W x 19-1/2 inches H x 21-1/2 inches D
-
Material: Steel
-
Refrigerant: R-410A, R-22
-
Standards/Certifications: cCSAus, AHRI certified, ISO 9001 standard
