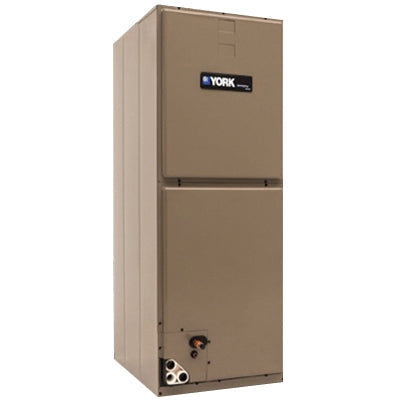

York AVC36CX21 Affinity AVC G30 Galvanized Steel 1-Piece Air Handler 1200 cfm 3 ton

Product Description

The York AVC36CX21 is a one-piece air handler designed for versatile applications. This unit offers up flow, down flow, and horizontal configurations. It integrates smoothly with existing HVAC systems, making it a suitable choice for both residential and commercial heating and cooling solutions.

• Flexible installation options for various air handling needs.
• Constructed from G30 galvanized steel for durability.
• Compatible with R-22 or R-410A refrigerants.

Product Highlights

This air handler allows advanced control capabilities and is engineered for energy efficiency.

Product Information

Standard Information

• Brand: York
• MPN: AVC36CX21

Technical Specifications

• Amperage Rating: 4.5 A
• BTU Rating: 36000 Btu/hr
• CFM Rating: 1200 cfm
• Coil Rating: 7.1 sq-ft Face Area, 2 Rows, 14 fins/in
• Coil Size: (3) 20 x 17.1 in
• Connection Type: 3/8 in Sweat Liquid, 3/4 in Sweat Vapor
• Dimension: 21 in W x 51-1/2 in H x 21-1/2 in D
• Filter Size: 20 x 20 x 1 in
• Finish: G30 Galvanized
• Frequency Rating: 60 Hz
• HP Rating: 1/2 hp
• Item Name: Air Handler
• Material: Steel
• Motor Type: Variable-Speed ECM
• Nominal Capacity: 3 ton
• Phase: 1 ph
• RPM: 1050 rpm
• Series: Affinity, AVC
• Type: 1-Piece
• Voltage Rating: 208/230 VAC
