Product Description

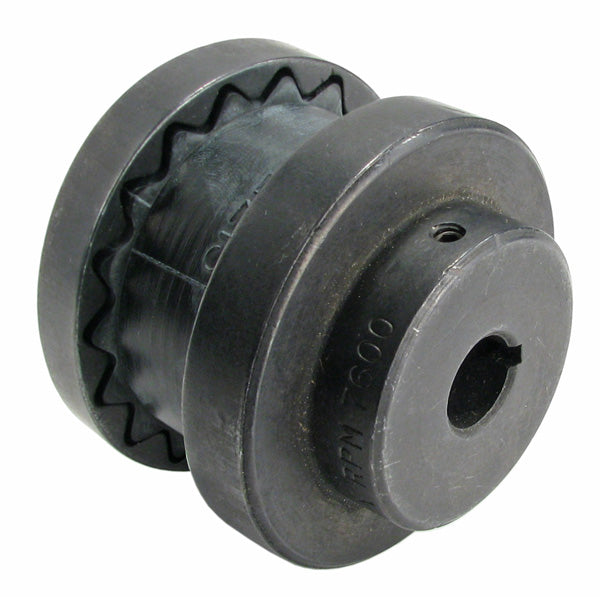

The WOODS 5J Sure-Flex EPDM Sleeve is a solid type JE insert designed to work with Sure-Flex Plus flanges and elastomeric couplings. Made from EPDM, it functions in temperatures from negative thirty to two hundred seventy-five degrees Fahrenheit. This sleeve fits shaft sizes from one half to one and one-quarter inches in inside diameter. The dimensions include a length of one and nine sixteenths inches and an outside diameter of two point nine three seven five inches. It can handle a maximum speed of seven thousand six hundred RPM and torque up to three hundred twelve in-lb. Additionally, it supports up to one degree of angular misalignment and a maximum parallel misalignment of zero point fifteen inches.
- Made from EPDM for improved temperature resistance
- Suitable for Sure-Flex Plus flanges
- Accommodates shaft sizes from one half to one and one-quarter inches
Product Highlights
This EPDM sleeve provides reliability for various motor applications, making it essential for HVAC systems.
Product Information
Standard Information
-
Manufacturer: WOODS
-
Coupling Size: 5
Technical Specifications
-
Finish: Black
-
Inside Diameter: 1/2 to 1-1/4 inches
-
Length: 1-9/16 inches
-
Material: EPDM
-
Maximum Speed: 7600 RPM
-
Outside Diameter: 2.9375 inches
-
Temperature Rating: -30 to 275 degrees Fahrenheit
-
Torque Rating: 312 in-lb
-
Type: 1-Piece Solid
