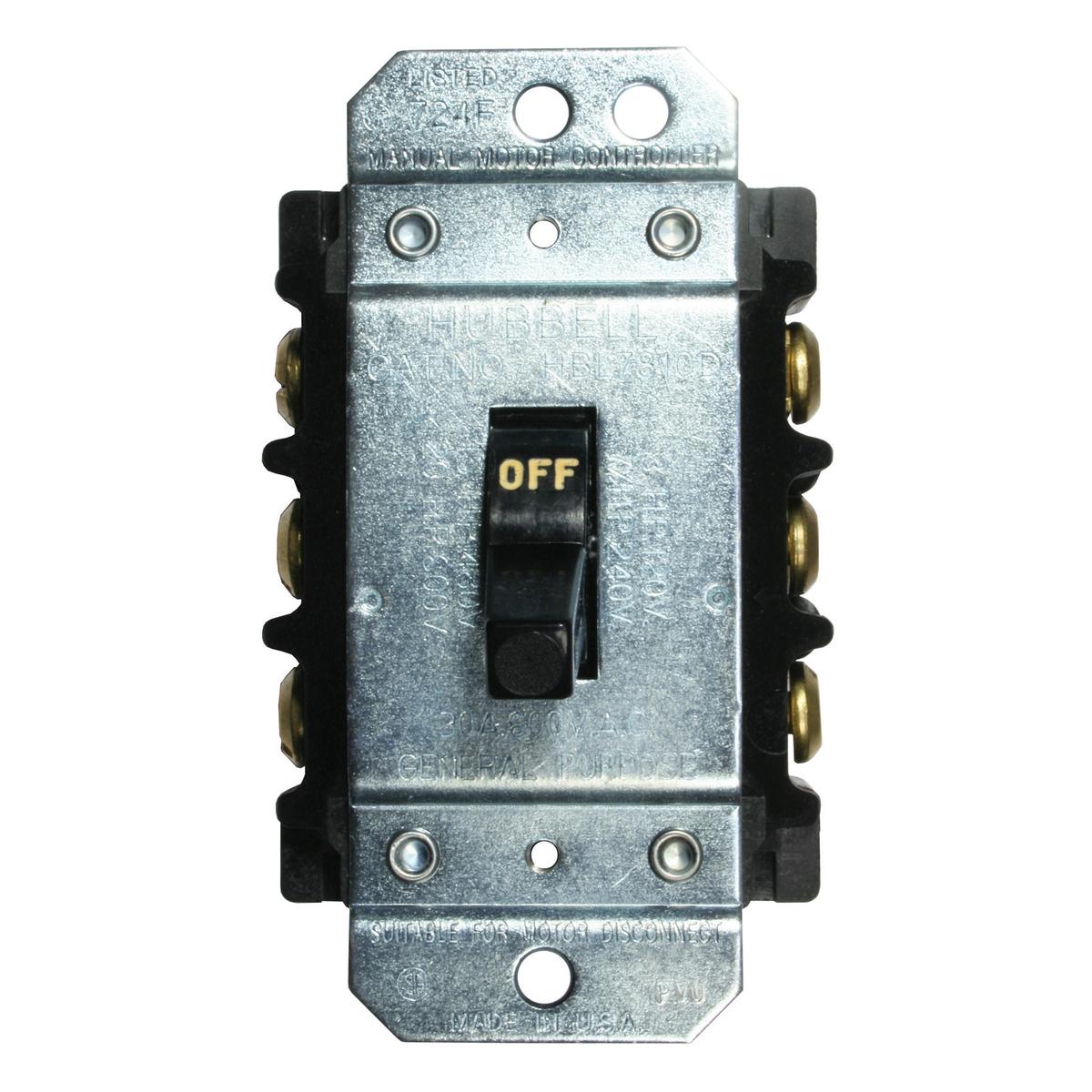

Wiring Device-Kellems HBL7810D Circuit-Lock 3-Phase Standard Manual Motor Controller 30 A 18000 W

Product Description

The Wiring Device-Kellems HBL7810D is a manual motor controller designed for industrial applications. This unit operates at 600 VAC and has a power rating of 18000 W with a current rating of 30 A. Its robust design allows for box or panel-mount installations. It ensures safe motor disconnect operations with reliable performance and a long lifespan.

• Rated suitable as a motor disconnect.
• Features quick make and slow break operation.
• Thermoset body provides high dielectric strength.

Product Highlights

This 3-phase standard manual motor controller offers superior functionality. It features a toggle actuator and is available with pressure screw terminal connections. The HBL7810D also meets stringent environmental conditions with operating capabilities down to negative forty degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Power Rating: 18000 W
• Number of Poles: 3
• Dimensions: 2.25 in W x 2.43 in D x 3.78 in H
• Operating Cycles: 10000 cycles
• Material: Thermoset
• Connection: Pressure Screw Terminal
• Environmental Conditions: -40 deg C
