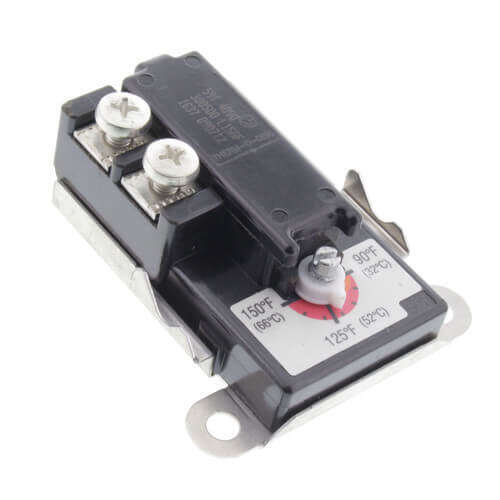

White Rodgers 755-1 Electric Hot Water Thermostat 90 to 150 Deg F Range SPST Open On Rise

Product Description

This White Rodgers 755-1 Electric Hot Water Thermostat is designed for controlling water heating systems. It operates within a temperature range from ninety degrees to one hundred fifty degrees Fahrenheit. The thermostat features a single pole, single throw (SPST) switch that opens on temperature rise.

• Voltage: 120/240 VAC
• Temperature Range: 90-150 Degrees Fahrenheit
• Reliable performance with a snap-action control

Product Highlights

The thermostat provides an efficient solution for maintaining desired water temperatures in various applications.

Product Information

Standard Information

• Brand: White Rodgers
• Type: Hot Water Thermostat

Technical Specifications

• Voltage: 120/240 VAC
• Temperature Range: +90-+150 Degrees Fahrenheit
• Switch Action: Open on Rise
• Amperage: 12.5A (480 VAC), 25.0A (277 VAC), 30.0A (120/240 VAC)
• Weight: 0.195 pounds
• Dimensions: 4.2 inches (Depth) x 2.7 inches (Width) x 1.3 inches (Height)
