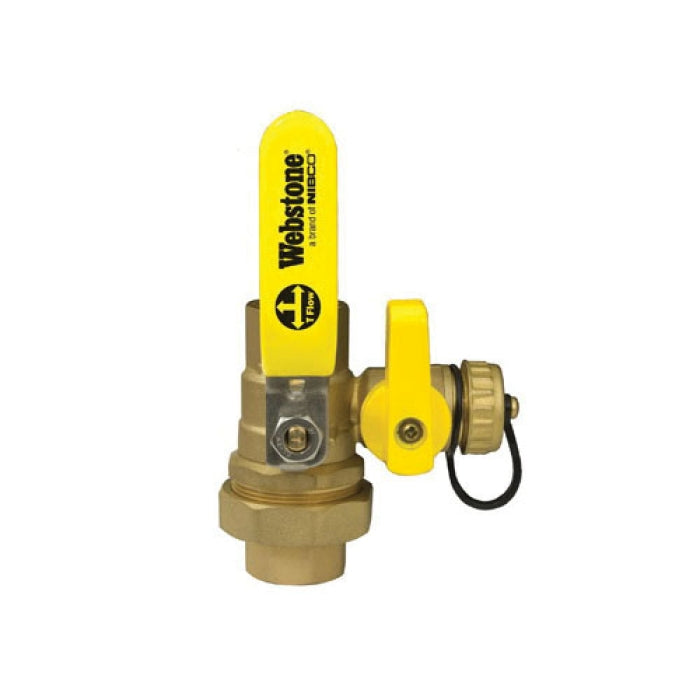

Webstone H-50434 Ball Drain 1 in FNPT Union x C

Product Description

The Webstone H-50434 is a ball drain valve designed for plumbing systems. It features a one inch nominal size and is built with a forged brass body for durability. This valve supports fluids like water, oil, and glycol mixtures. Its innovative single union design simplifies installation and maintenance.

• Eliminates the need for complex assemblies
• Adjustable flow path for versatile draining
• Compatible with various system appliances

Product Highlights

The H-50434 valve offers high flow through its full port design, with a pressure rating of up to six hundred psi CWP and a temperature rating of two hundred fifty degrees Fahrenheit. It also includes an EPDM/PTFE softgoods configuration that ensures long-lasting performance.

Product Information

Standard Information

• Brand: Webstone
• Manufacturer: NIBCO Inc.

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Forged Brass
• Ball Material: HCP Brass
• End Style: FNPT Union x C
• Inlet to Outlet Length: 4.19 inches
• Media: Glycol Mixture/Oil/Water
• Nominal Size: 1 inch
• Orifice Size: 1/2 inch
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: 5043
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 250 degrees Fahrenheit
• Top to Inlet Center: 2.63 inches
• Trim Material: Brass/PTFE
• Type: Standard
