Product Description

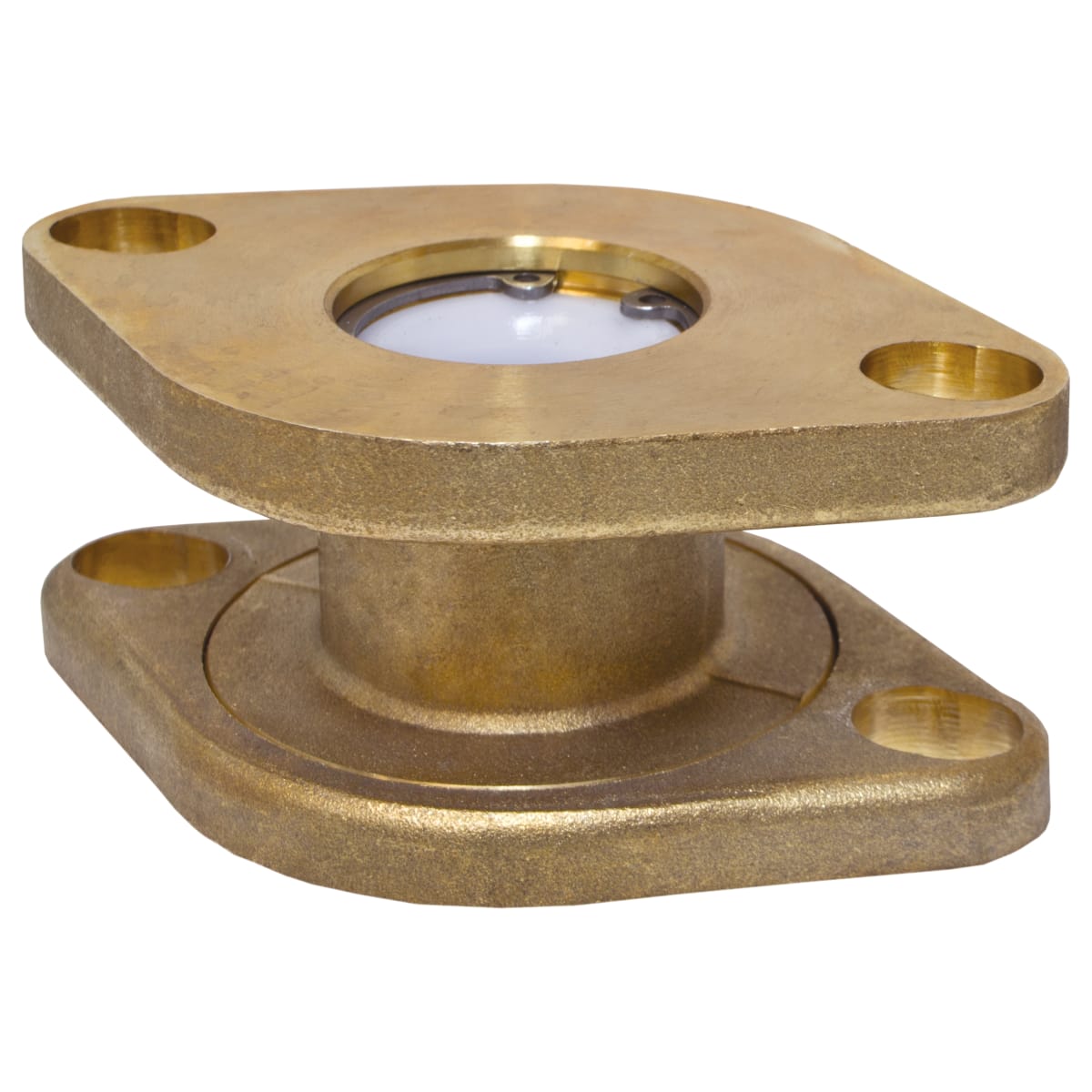

The Webstone H-13703HV is a non-potable isolator double flanged check valve designed for isolating circulator pumps. This valve minimizes air introduction during service or replacement of pumps, making maintenance efficient. The product's design integrates multiple components into a single forged brass body, simplifying installation and saving valuable space. It is suitable for use with water, oil, and glycol mixes in both residential and commercial applications. This valve has advanced technology with several patents pending, establishing it as a leader in flanged ball valves.
- Uni-flange design simplifies pump replacement
- Can be installed between the pump and isolator
- Operates in any orientation
Product Highlights
This valve offers a maximum flow rate while ensuring reliable operation.
Product Information
Standard Information
-
Brand: Webstone
-
MPN: H-13703HV
Technical Specifications
-
Size: 3/4 to 1-1/4 inches
-
Type: Isolator Rotating Flange Double Flanged Checks
-
Material: Brass
-
Connection Type: Flange x Rotating Flange
-
Pressure Rating: 150 PSI at 200 degrees F
-
Flow Rate: 15 to 50 gallons per minute
-
Temperature Rating: 200 degrees F
-
Application: Non-Potable
