Wattstopper RH4FBL3-PTC 120/277-Volt AC at 60-Hz 0 - 10-Volt 10-Amp at 120-Volt 5-Amp at 277-Volt 1-Pole 3-Way Lighting Dimmer

Product Description

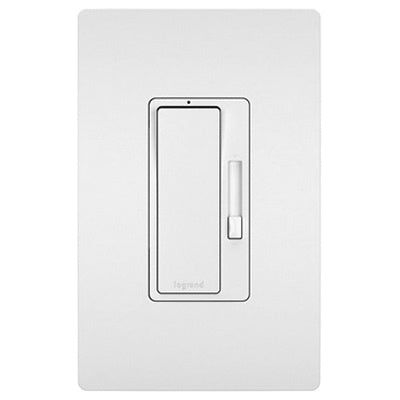

The Wattstopper RH4FBL3-PTC is a 1-Pole 3-Way lighting dimmer. It operates at a voltage rating of 120/277-Volt AC at 60-Hz and uses 0 - 10-Volts. The dimmer supports a current rating of 10-Amps at 120-Volts and 5-Amps at 277-Volts. This device is equipped with a preset paddle switch for controlling light brightness efficiently. The dimmer features a durable polycarbonate enclosure, making it suitable for various lighting applications.

• Compatible with 0-10 Volt, 4-Wire, fluorescent and LED dimming ballasts
• Wall box mountable, dimensions are 1.75 inches wide, 1.25 inches deep, and 4.25 inches high
• Designed for residential and commercial use

Product Highlights

This dimmer is part of the Radiant line. It includes features like a white LED that glows when the dimmer is off, aiding visibility in darker areas. It also has a wider slide control for easier operation and a memory function that restores the last lighting level after a power outage.

Product Information

Standard Information

• Brand: Wattstopper
• Manufacturer: Legrand

Technical Specifications

• Manufacturer Part Number: RH4FBL3-PTC
• Voltage Rating: 120/277 Volt AC at 60 Hz, 0 - 10 Volt DC
• Amperage Rating: 10 Amp at 120 Volt, 5 Amp at 277 Volt, 3 Milli-Amp at 0 - 10 Volt Sink

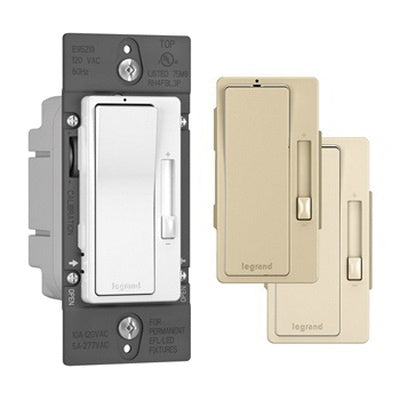

• Color: White/Ivory/Light Almond (Tri-Color)
• Dimensions: 1.75 Inch Width x 1.25 Inch Depth x 4.25 Inch Height
• Type: 3-Way
• Actuator: Preset Paddle
• Action: ON/OFF
• Number of Poles: 1
• Standards: cULus, UL, CSA C22.2 No.184
