Product Description

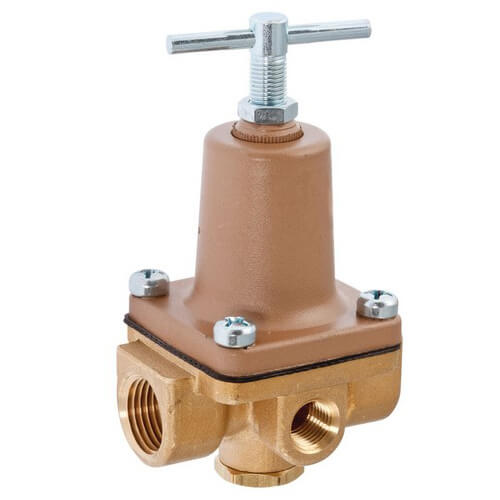

The Watts LF263A is a lead-free, 3-way pressure reducing valve. It is designed for general purpose applications using water and No. 2 fuel oil. This valve features a lead-free brass body with female NPT threaded connections. The valve includes a three-way low-pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, and reinforced Buna-N diaphragm. It has an adjustable reduced pressure range of ten to one hundred twenty-five psi. The valve is suitable for various uses including beverage dispensing, paint spraying equipment, ice cube machines, humidifiers, and drinking fountains.
- Lead-free brass construction for safety
- Adjustable reduced pressure range of 10 to 125 psi
- Includes three-way low-pressure gauge port
Product Highlights
This valve provides reliable pressure regulation in a compact design for various applications.
Product Information
Standard Information
-
Brand: Watts
-
Model: LF263A
Technical Specifications
-
MPN: W-0009836
-
Inlet Connection Size: 1/2 inch
-
Outlet Connection Size: 1/2 inch
-
Inlet Connection Type: Female Threaded
-
Outlet Connection Type: Female Threaded
-
Maximum Working Pressure: 300 psi (21 bar)
-
Maximum Operating Temperature: 140 Fahrenheit
-
Minimum Temperature: 0 Fahrenheit (-18 Celsius)
-
Body Material: Brass
-
Disc Material: Buna-N
-
Lead Free: Yes
-
Valve Style: 3-way
