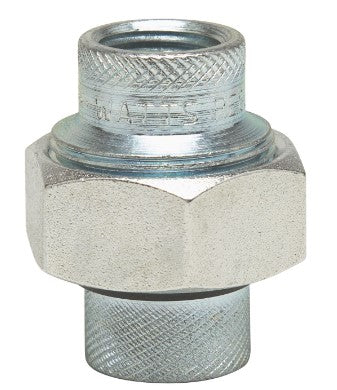

Watts 821935 Lead Free Dielectric Union Female Iron Pipe Thread To Female Iron Pipe Thread Galvanized Connections

Product Description

The Watts 821935 lead free dielectric union is designed for use in both commercial and residential plumbing systems. This union helps to prevent corrosion that can occur from galvanic and stray electrical currents between dissimilar metals. It is commonly installed in applications including hot water storage tanks, air conditioning systems, steam systems, and gas piping. The union features female iron pipe threads on both sides for easy installation.

• Lead-free construction to meet safety standards
• Compatible with hot water applications up to 180 degrees F
• Pressure rated for 250 psi

Product Highlights

This dielectric union includes a Buna-N gasket which isolates the two metal components, enhancing system integrity and lifespan. It is suitable for various plumbing configurations to ensure reliable performance in diverse applications.

Product Information

Standard Information

• Brand: Watts
• Category: Dielectric Union

Technical Specifications

• MPN: 821935
• Maximum Temperature: 180 degrees F (82 degrees C)
• Maximum Pressure: 250 psi (17.2 bar)
• Connection Type: FIP thread to FIP thread (galvanized)
• Includes: Union nut, two tailpieces, and Buna-N gasket
