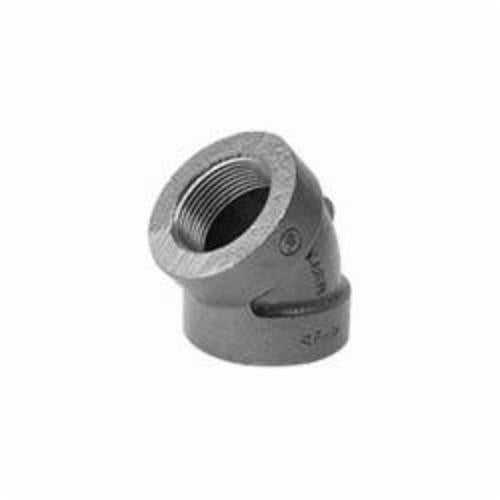

Ward Mfg 0300028503 E.BC45L 45 deg Pipe Elbow 3/4 in

Product Description

Ward Mfg 0300028503 is a 45-degree pipe elbow made from cast iron. This fitting is designed for use with three-quarter inch nominal pipes and features a female National Pipe Thread (FNPT) end style. It can handle a pressure class of 125 pounds and withstands pressures up to 175 psi. This durable fitting operates effectively in temperature ranges from negative twenty to one hundred fifty degrees Fahrenheit.

• Designed for three-quarter inch nominal pipes
• Constructed from high-quality cast iron
• Meets ASTM and ASME standards for performance

Product Highlights

This pipe elbow is ideal for connecting pipes at a 45-degree angle, offering reliable performance for various plumbing applications.

Product Information

Standard Information

• Manufacturer: Ward Mfg
• Part Number: 3030097

Technical Specifications

• Construction: Cast
• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black
• Fitting Type: 45 deg Elbow
• Manufacturer Part Number: E.BC45L
• Material: Cast Iron
• Nominal Size: 3/4 in
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Standards/Approvals: ASME B16.4/B1.20.1/B16.3|ASTM A126/A153|WW P501
• Temperature Rating: -20 to 150 deg F
