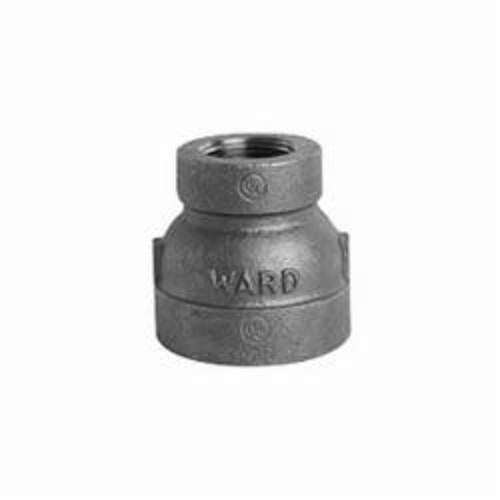

Ward Manufacturing 1XD.BMC Pipe Reducing Coupling 1 x 1/2 in Nominal 150 lb

Product Description

The Ward Manufacturing 1XD.BMC is a pipe reducing coupling designed for connecting different sizes of pipes in plumbing applications. This coupling features a nominal size of one inch to one-half inch with an FNPT end style. Built from malleable iron and rated for 150 lb, it ensures durability and reliability in various plumbing tasks.

• Constructed from malleable iron
• FNPT end style
• 150 lb pressure class

Product Highlights

This coupling is ideal for use in sprinkler and drainage systems, providing a reliable connection between pipe sizes while maintaining pressure compliance.

Product Information

Standard Information

• Part Number: 1XD.BMC
• UPC: 662467355705

Technical Specifications

• Country of Origin: US
• End Style: FNPT
• Finish: Black
• Fitting/Connector Type: Reducing Coupling
• Length: 1.69 in
• Material: Malleable Iron
• Mfg Standards/Approvals: ASME B16.14/B16.4/B1.20.1 | ANSI B1.20.1 | FM Approved | NSF 61-G | UL/ULC Listed
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 150 deg F
