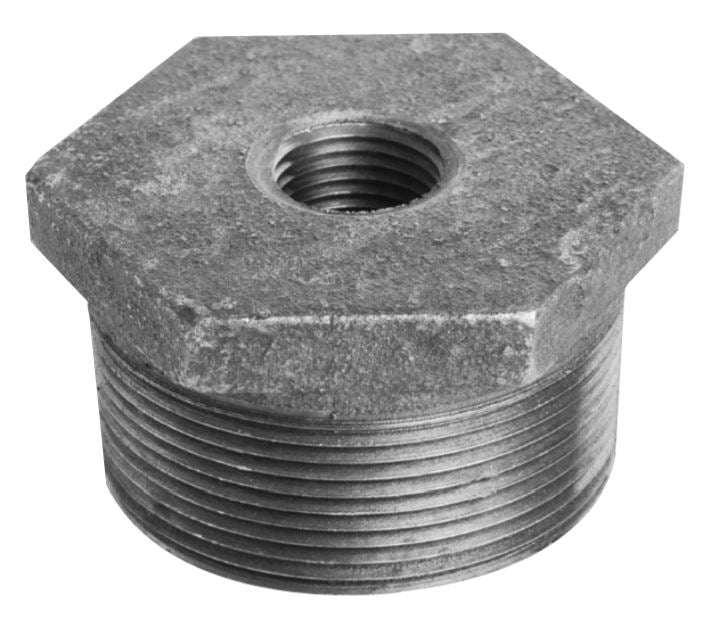

Ward 1DXE.BB Hex Head Pipe Bushing 1-1/2 x 3/4 in FNPT x MNPT 125 lb

Product Description

The Ward 1DXE.BB Hex Head Pipe Bushing is designed for various plumbing applications. This product features an FNPT x MNPT connection type. It is made from durable cast iron and is rated for 125 lb pressure. The nominal size is one and a half by three-fourths inches.

• Constructed from high-quality cast iron for long-lasting use.
• FNPT x MNPT fitting style allows for diverse installation options.
• Ideal for use in sprinkler systems and drainage installations.

Product Highlights

This hex head pipe bushing meets important manufacturing standards. It is suitable for high-pressure applications and has a rust-resistant coating.

Product Information

Standard Information

• Brand: Ward Manufacturing
• Part #: J1137

Technical Specifications

• Country of Origin: US
• Domestic/Import: Domestic
• End Style: FNPT x MNPT
• Finish: Black
• Fitting/Connector Type: Bushing
• Hex Size: 1.63 in
• Material: Cast Iron
• Mfg Standards/Approvals: ANSI/ASME B16.14/B1.20.1, ASTM A126/A153, FM Approved, NSF 61-G, UL/ULC Listed, WW P471
• Nominal Size: 1-1/2 x 3/4 in
• Package Weight: 0.43 lb
• Pressure Class: 125 lb
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 To 150 deg F
• Thickness: 0.37 in
• Type: Hex Head
