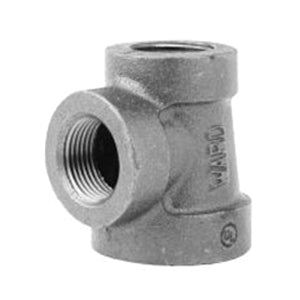

Ward 1DX1BXE.BCT Reducing Tee Class 125 1-1/2 x 1-1/4 x 3/4 in

Product Description

The Ward 1DX1BXE.BCT is a reducing tee made from class 125 black cast iron. It features a connection size of one and a half by one and a quarter by three fourths inches with FNPT threading. This fitting is designed for various plumbing applications, providing a reliable option for connecting different pipe sizes.

• Constructed from ASTM A126 Class A cast iron
• Pressure rated up to 175 psi
• Temperature range from negative twenty to one hundred fifty degrees Fahrenheit

Product Highlights

This reducing tee is made to American National Standards and features a chamfer in all openings to ensure a smooth entrance for pipes, reducing the risk of damage during installation.

Product Information

Standard Information

• Brand: Ward
• Part Number: CIT112.114.34

Technical Specifications

• Connection Size: 1-1/2 x 1-1/4 x 3/4 in
• Connection Type: FNPT
• Finish: Black
• Item Name: Reducing Tee
• Length: 2.97 in
• Material Specifications: ASTM A126 Class A
• Material: Cast Iron
• Pressure Class: Class 125
• Pressure Rating: 175 psi
• Schedule: STD
• Temperature Rating: -20 to 150 deg F
• Standards/Certifications: ANSI/ASME B16.4, ANSI/ASME B1.20.1, UL and ULC listed, FM approved, NSF 61 and NSF 61 Annex G certified
