Product Description

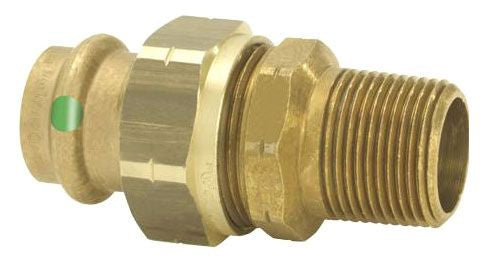

The Viega 79735 is a ProPress x MPT ground joint end union fitting made from lead-free bronze. This fitting is suitable for various applications including commercial and residential plumbing. It connects to a ProPress end and features male threads for secure attachment.
- Lead-free bronze construction
- Compatible with ProPress and male threaded connections
- Pressure rated for up to 200 PSI
Product Highlights
This fitting integrates Viega’s Smart Connect technology and allows for wet connections, reducing installation time. It is designed for easy pressure testing and helps installers identify unpressed connections quickly.
Product Information
Standard Information
-
Manufacturer: Viega
-
Model: 79735

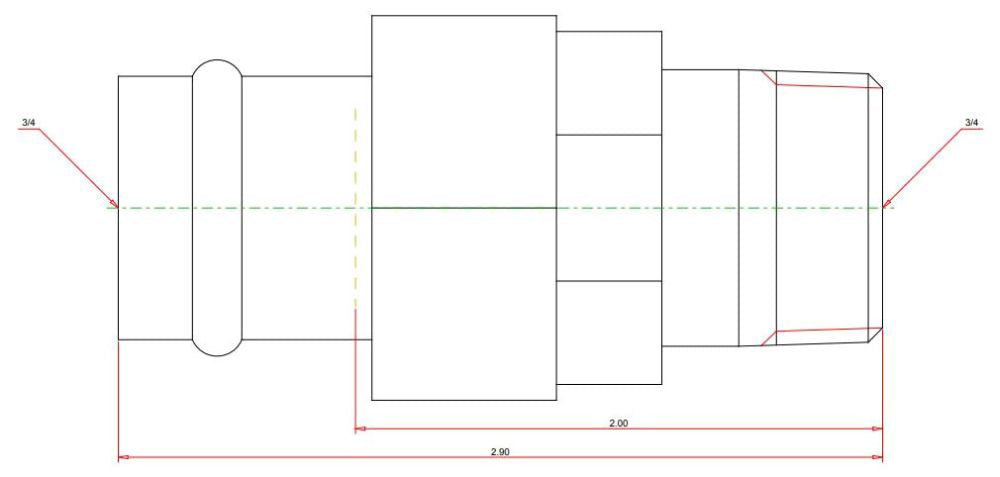

Technical Specifications
-
Size A: 3/4 inch
-
Size B: 3/4 inch
-
Material: Bronze
-
End Connection: ProPress x Male Threaded
-
Pressure Rating: 200 PSI
-
Temperature Rating: 0 to 250 degrees Fahrenheit
-
Applications: Commercial, residential, potable water, hydronic heating, fire sprinkler, chilled water, cooling water, low pressure steam, compressed air
-
Compliance: ABS, NSF 61/372, CRN, UL, CSA, IAPMO, NFPA
-
Includes: EPDM sealing element
