Viega 20718 Tee Fitting ProPress XL-C 4 x 4 x 2-1/2 in

Product Description

The Viega 20718 is a copper tee fitting designed with a reducing configuration. It connects pipes with dimensions of four inches by four inches, and two and one-half inches. This fitting is suitable for use with ProPress connections, ensuring quick and secure installations.

• Material: Copper
• Pressure Rating: 200 PSI
• Temperature Range: 0 to 250 degrees Fahrenheit

Product Highlights

This product is ideal for various plumbing applications, including hydronic heating and chilled water systems. It includes a patented Smart Connect feature for easier installation.

Product Information

Standard Information

• Brand: Viega
• Model Number: 20718

Technical Specifications

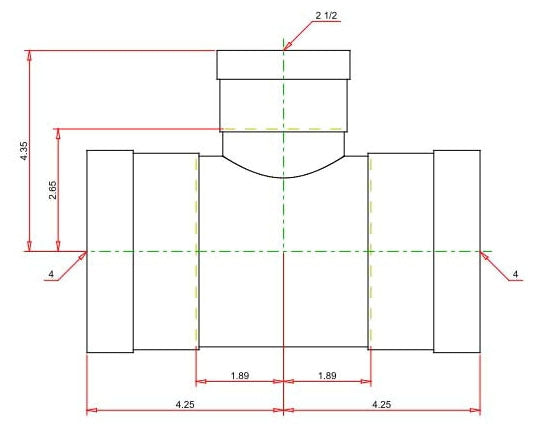

• Nominal Size: 4 inch x 4 inch x 2-1/2 inch
• End Connection: ProPress XL-C
• Applicable Standards: ABS, CSA MSE-13, FM 1920, IAPMO PS117, ICC LC 1002, UL 213, ICC, NFPA 13
• Applications: Chilled water, compressed air, hydronic heating, cooling water, low pressure steam, fire sprinkler systems, potable water
• Includes: EPDM sealing element
• For Use With: ASTM B88 tubing
