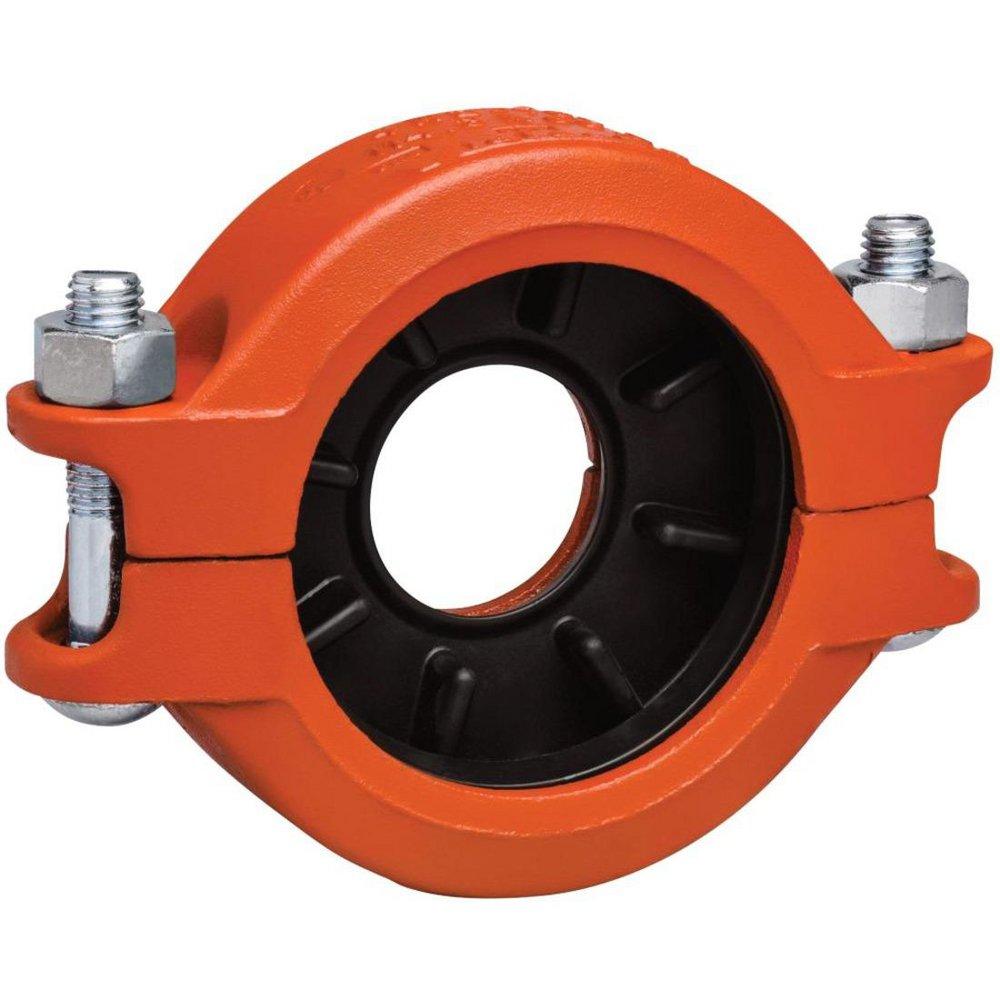

Victaulic LB67750PE0 FireLock Style 750 2 x 1-1/2 in. Painted Grooved Reducing Coupling

Product Description

The Victaulic LB67750PE0 is a FireLock Style 750 reducing coupling designed for efficient piping connections in commercial and industrial applications. This product features a painted finish and a unique design that combines two couplings into one for streamlined assembly and reduced components.

• Compatible with roll grooved and cut grooved pipe
• Pressure rating of 350 psi
• Constructed from ductile iron with EPDM gasket

Product Highlights

The FireLock Style 750 coupling replaces two separate couplings and a reducing fitting, allowing for a direct reduction in piping runs.

Product Information

Standard Information

• Brand: Victaulic
• MPN: LB67750PE0

Technical Specifications

• Connection Size: 2 x 1-1/2 in
• Finish: Orange Enamel
• Maximum End Load: 1000 lb
• Pressure Rating: 350 psi
• Temperature Rating: -30 to 230 deg F
• Length: 5.28 in
• Material: Ductile Iron
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
