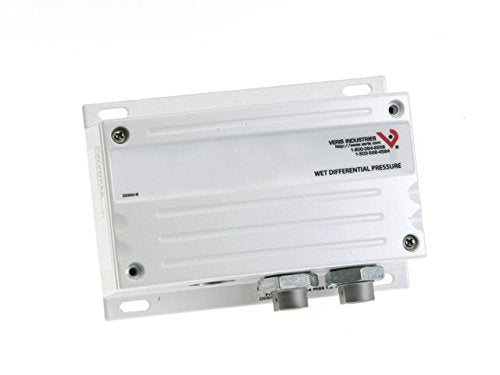

Veris PWXX04S Pressure Sensor 0-100PSID Wet Media Transducer

Product Description

The Veris PWXX04S is a high-precision pressure sensor designed for industrial applications. This sensor accurately measures pressure levels within a range of 0 to 100 pounds per square inch differential (PSID) and is particularly suitable for environments that require water resistance with NEMA 4 rating.

• Optimal for applications in HVAC systems and industrial processes.
• Flexible output options including 4-20mA, 0-5V, and 0-10V.
• Equipped with a robust white powder-coated aluminum housing to withstand harsh conditions.

Product Highlights

The sensor features a dual-color LED for status indication, making it easy to monitor system operations at a glance. Its pushbutton auto-zero functionality simplifies installation and reduces maintenance needs.

Technical Specifications

• Measurement Range: 0 to 100 PSID
• Output Options: 4-20mA, 0-5V, 0-10V
• Housing Material: Powder-coated aluminum
• Operating Environment: -10 to 55 degrees Celsius, non-condensing humidity up to 90%
• Installation: Easy setup with selectable pressure ranges and responsive customer support.
