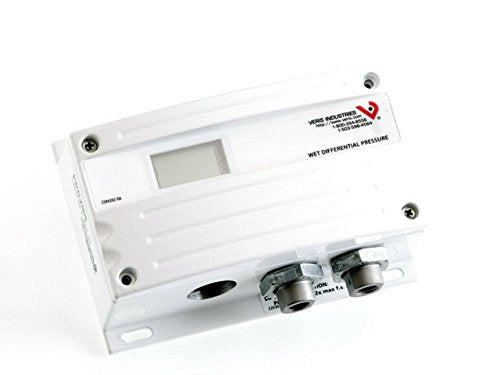

Veris PW2LX04S Pressure Sensor Wet 2Wire NEMA 4 LCD 0-100PSID

Product Description

The Veris PW2LX04S is a high-performance wet differential pressure sensor designed for stable and precise measurements in a variety of industrial environments. This model is particularly suited for applications involving non-corrosive fluids.

• Robust NEMA 4 rated die-cast enclosure for durability in harsh conditions.
• Features a microprocessor profiled sensor for high accuracy.
• Flexible 2-wire configuration with selectable output from 4-20mA.

Product Highlights

Key features include electronic pushbutton zero calibration, selectable pressure ranges, and dual sensor design. These enable easy installation and maintenance while ensuring operational reliability and performance.

Product Information

Standard Information

• Application: Used for pressure monitoring across various setups including pumps and filters.
• Input Power: Requires 12 to 24VDC, loop powered.

Technical Specifications

• Pressure Range: 0-100 PSID capable of handling media compatible with 17-4 PH stainless steel.
• Output: User selectable 4-20mA, clipped and capped.
• Accuracy: ±1% F.S. for most ranges, ±2% F.S. for extended ranges.
• Temperature Operative Range: -10 to 55°C for optimal performance.
• Surge Damping: Electronic, with a 5-second averaging feature.
• Housing: White powder-coated aluminum for increased durability.
