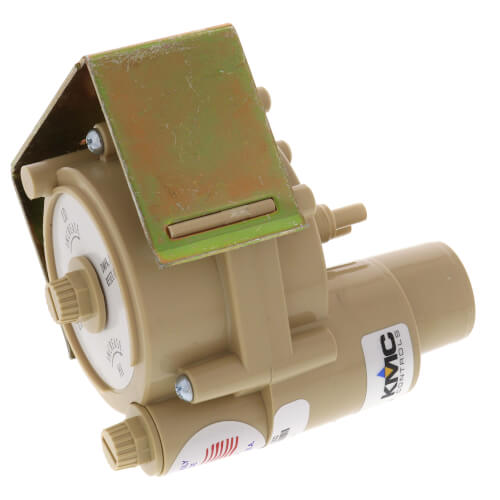

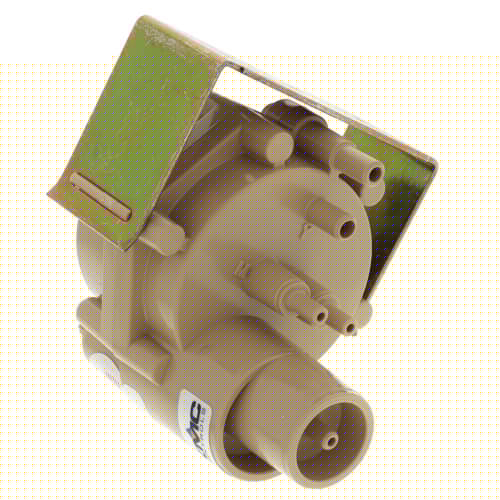

KMC Controls CSC-2003 Reset Volume Controller 14.4 SCIM at 20 PSIG VAV HVAC

Product Description

The KMC Controls CSC-2003 is a reset volume controller designed for VAV terminal units in HVAC systems. It operates at 14.4 SCIM with a setting at twenty PSIG, and is suitable for controlling air velocity effectively. This product requires a thermostat, typically a room thermostat, to adjust the velocity setpoint based on demand.

• Adjustable minimum and maximum airflow settings
• Compatible with push-on fittings for one-fourth inch O.D. tubing
• Includes a mounting bracket for easy installation

Product Highlights

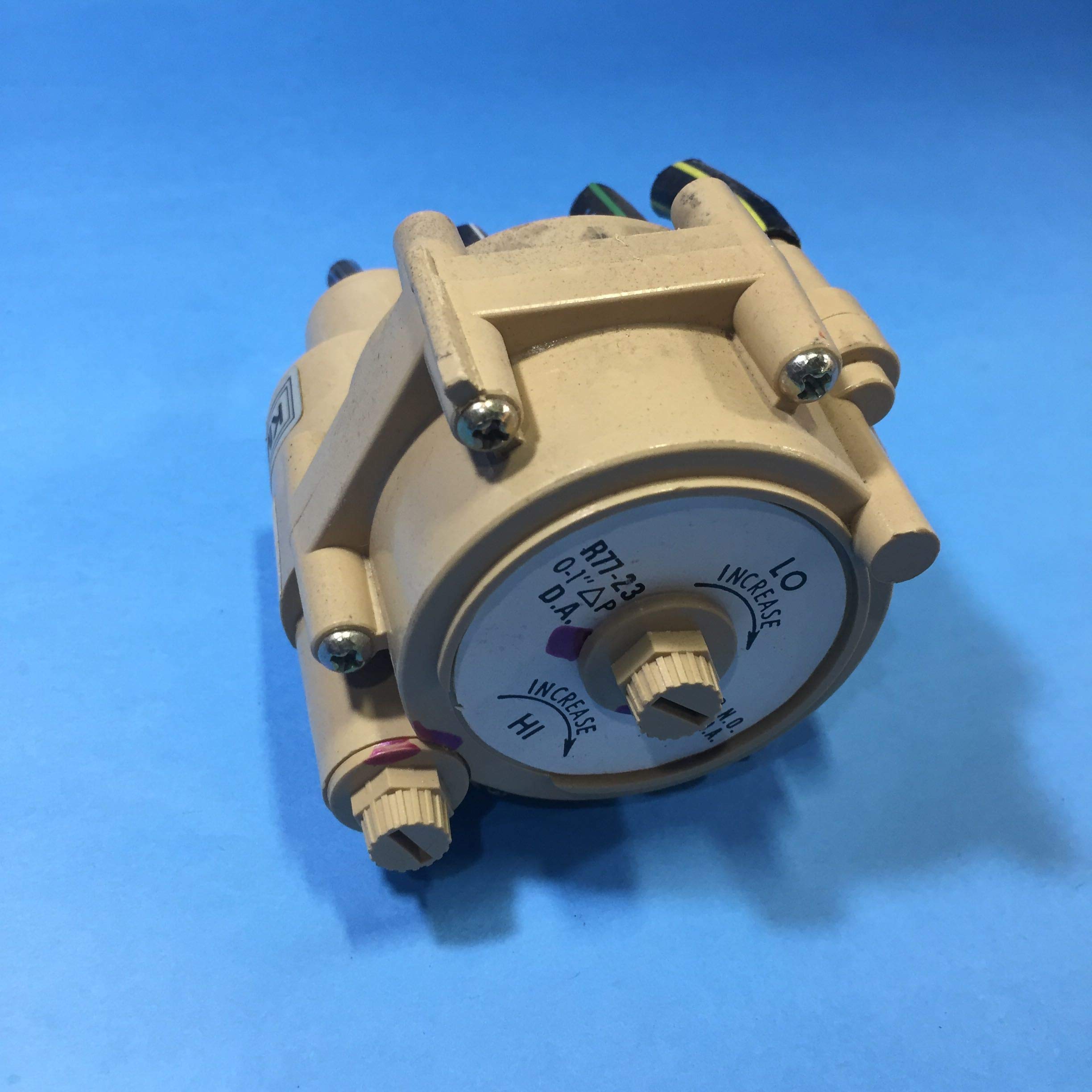

This volume controller features direct acting capabilities and is intended for normally open systems. It is equipped with separate adjustment knobs allowing users to easily set and fine-tune airflow limits.

Product Information

Standard Information

• Manufacturer: KMC Controls
• Model Number: CSC-2003

Technical Specifications

• Air Consumption: 14.4 SCIM at 20 PSIG
• Main Air Pressure (PSIG): 15 to 30 PSIG
• Max. Signal Pressure (In. WC): 6
• Operating Temperature Limit: 40 to 120 Degrees F
• Material of Construction: ABS
• Includes: Mounting bracket
• Accessories: HFO-0006/SSS-1000 Series Flow Sensors
• Reset Pressure Band: 8 +/-0.5 to 13 PSIG
