Product Description

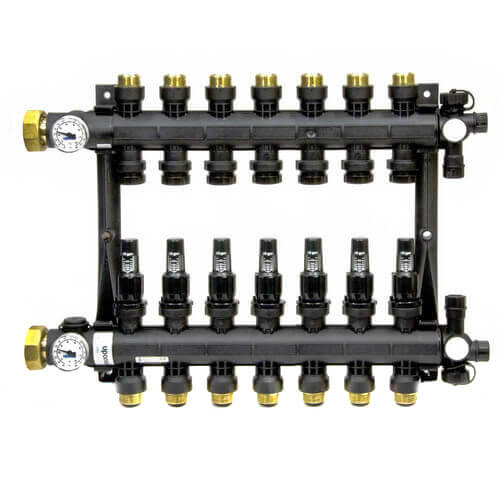

The Uponor A2670701 EP Heating Manifold Assembly is a fully assembled unit designed for hydronic radiant heating systems. This manifold features seven loops and includes a flow meter for efficient monitoring. The connection type is ISO 228-G X ISO 228-G and it accommodates a maximum flow rate of fifteen point four gallons per minute. The manifold is made with engineered polymer, ensuring durability under various conditions.
- Seven-loop configuration to enhance flow distribution.
- Flow meter included for easy monitoring of system performance.
- Designed for compatibility with PEX radiant heating systems.
Product Highlights
Ideal for installation in radiant heating and cooling systems, this manifold is built to provide reliable performance in demanding conditions.
Product Information
Standard Information
-
Brand: Uponor
-
MPN: A2670701
Technical Specifications
-
Nominal Size: 1-1/4 X 3/4 inches
-
Connection Type: ISO 228-G X ISO 228-G
-
Number Of Loops: 7
-
Flow Rate: 15.4 GPM
-
Width: 19.723 inches
-
Height: 14.184 inches
-
Depth: 3.11 inches
-
Body Material: Engineered Polymer
-
Additional Specifications: Loop Cv: 1.4, Test Pressure Air Max: 101.5 PSI, Test Pressure Water Max: 145 PSI
