Product Description

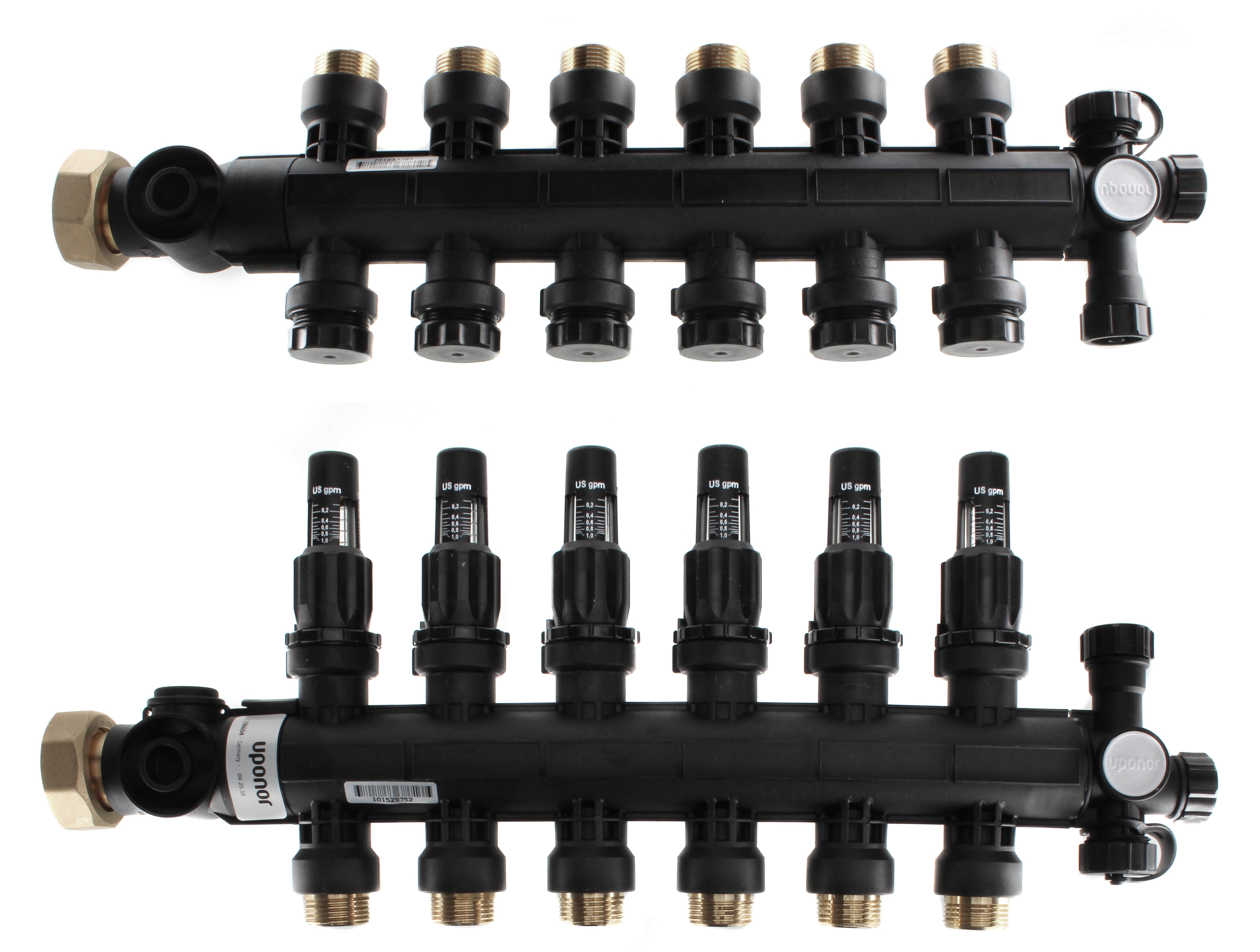

The Uponor A2670601 is a six-loop manifold assembly designed for hydronic heating systems. Constructed from engineered polymer, this assembly includes an integrated flow meter with a maximum flow rate of fifteen point four gallons per minute. It features ISO 228-G connections and comes fully assembled for immediate installation.
- Six-loop configuration for efficient heating.
- Includes built-in flow meters for easy monitoring.
- Durable engineered polymer body resists corrosion.
Product Highlights
This manifold is suitable for radiant heating and cooling applications. It supports various fittings for easy integration into existing systems.
Product Information
Standard Information
-
Brand: Uponor
-
MPN: A2670601
Technical Specifications
-
Nominal Size: 1-1/4 inches x 3/4 inches
-
Connection Type: ISO 228-G
-
Number of Loops: 6
-
Flow Rate: 15.4 GPM
-
Width: 17.754 inches
-
Height: 14.184 inches
-
Depth: 3.11 inches
-
Body Material: Engineered Polymer
-
Loop Cv: 1.4
-
Max Air Test Pressure: 101.5 PSI
-
Max Water Test Pressure: 145 PSI
