Product Description

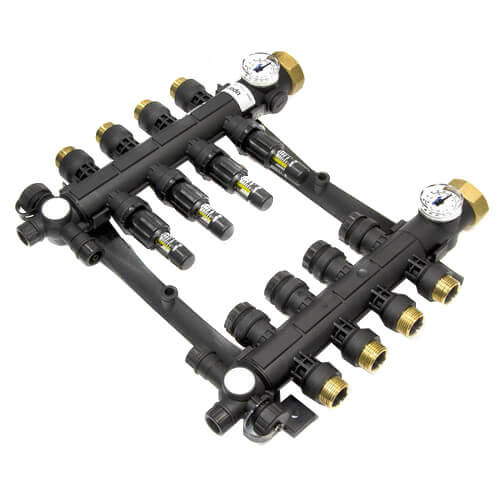

Uponor A2670401 is an EP Heating Manifold Assembly designed for efficient hydronic radiant heating. This unit features a flow meter and supports four loops with a maximum flow rate of fifteen point four gallons per minute. Built from engineered polymer, the manifold is robust and ready for installation straight out of the box. Suitable for use in various heating systems including radiant heating and cooling applications, the manifold maintains high standards in performance and reliability.
- Fully assembled for quick installation
- Compatible with 1-1/4 x 3/4 inch connections
- Flow rate of 15.4 GPM
Product Highlights
The manifold includes isolation and balancing valves, making it user-friendly and efficient for hydronic heating systems.
Product Information
Standard Information
-
Brand: Uponor
-
MPN: A2670401
Technical Specifications
-
Nominal Size: 1-1/4 x 3/4 inches
-
Connection Type: ISO 228-G x ISO 228-G
-
Number of Loops: 4
-
Flow Rate: 15.4 GPM
-
Width: 13.817 inches
-
Height: 14.184 inches
-
Depth: 3.11 inches
-
Body Material: Engineered Polymer
-
Loop Cv: 1.4
-
Test Pressure (Air Max): 101.5 PSI
-
Test Pressure (Water Max): 145 PSI
