Product Description

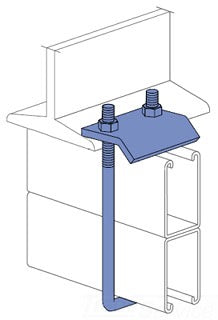

The Unistrut Corp. P2787-EG Beam Clamp is designed for effective mechanical support. This clamp is made with a steel material and features an electrogalvanized finish. It is suitable for attaching rod hangers to beams by clamping onto the load flange. This product can support a load capacity of one thousand pounds.
- Material: Steel
- Finish: Electrogalvanized
- Load Capacity: 1000 pounds
Product Highlights
This beam clamp is essential for electrical and mechanical installations, providing a strong and reliable connection.
Product Information
Standard Information
-
Brand: Unistrut Corp.
-
Manufacturer: Unistrut Corp.
Technical Specifications
-
Type: 1-U Type
-
Dimensions: 3 inches Length x 8-1/4 inches Height x 1/4 inch Thickness
-
Included: 3/8 inch Hex Nut and U-Bolt
-
Channel Size: 1-5/8 inch Width
-
Hole Spacing: 13/16 inch (From End), 1-7/8 inch (on Center)
-
Materials Specification: ASTM A1011/A575/A576/A635/B633 SS Grade 33
-
Made in USA: Yes
