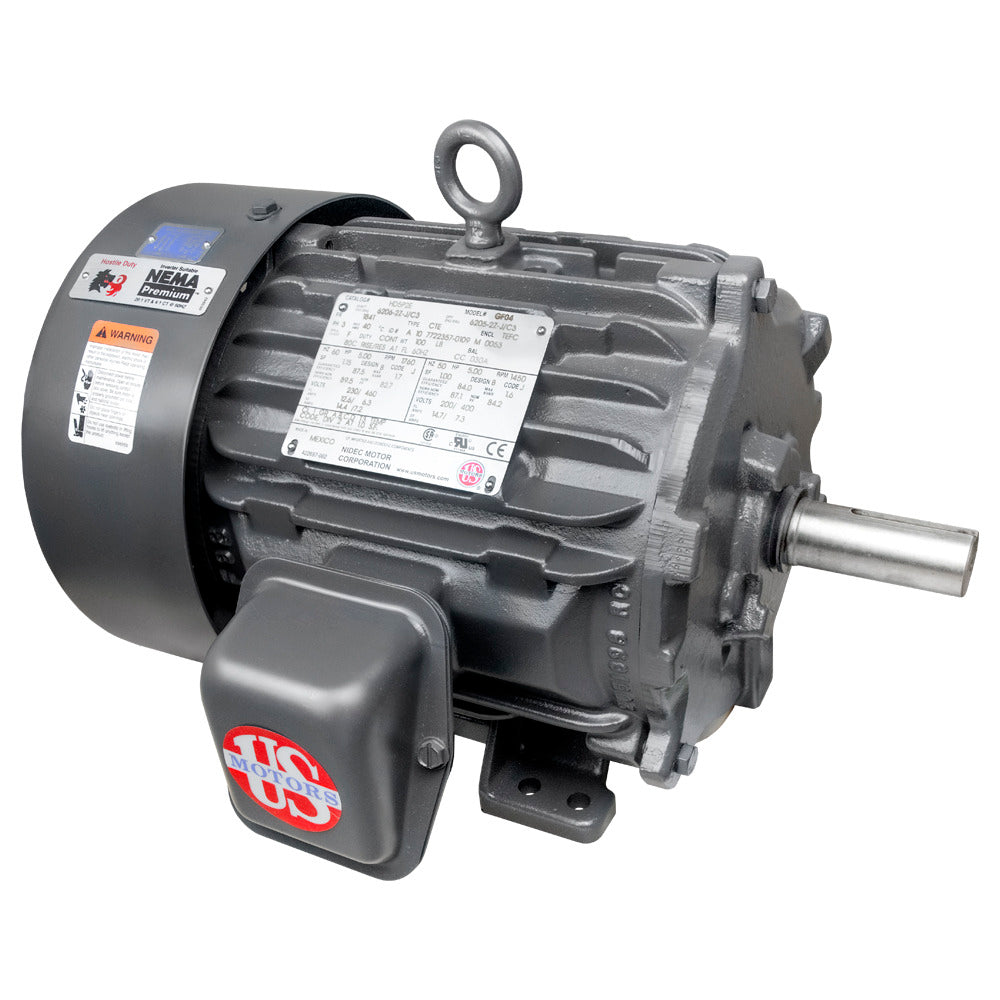

U.S. Motors HD7P4E Hostile Duty Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors HD7P4E is a Hostile Duty Three Phase TEFC Horizontal - Footed Motor designed for reliable operation in tough environments. This motor has a power output of seven and one-half horsepower and operates at nine hundred revolutions per minute. It is suitable for various industrial applications requiring a robust motor with high efficiency. Features include:

• Horizontal footed mounting for easy installation
• TEFC enclosure for protection against dust and moisture
• Continuous duty rating for lasting performance

Product Highlights

The HD7P4E is ideal for use in pulp and paper plants, saw mills, foundries, and chemical facilities. The motor offers a voltage rating of two hundred thirty to four hundred sixty volts and is engineered for stability and efficiency.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: HD7P4E

Technical Specifications

• Hz: 50/60 Hz
• Mounting: Horizontal - Footed
• Phase: Three Phase
• Duty: Continuous Duty
• RPM: 900 rpm
• Motor Application: Hostile Duty
• Poles: 8
• Insulation: F
• Full Load Amps: 22.3/11.1
• Enclosure: TEFC
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Frame Material: Cast Iron
• Full Load rpm: 730 rpm, 880 rpm
• Service Factor: 1.15
• Voltage Rating: 230/460 & 200/400
• Frame: 256T
• Full Load Efficiency: 86.5 %
• Weight: 250.0 LB
• EAN or UPC: 786382132101
