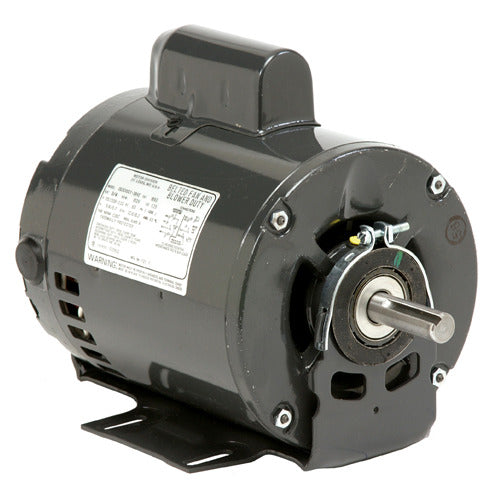

U.S. Motors D13CP3PH9 General Purpose Single Phase ODP Cradle Motor

Product Description

The U.S. Motors D13CP3PH9 is a reliable general purpose single phase ODP cradle motor. This motor features a horsepower rating of one-third and operates at a speed of 1200 rpm. It is designed for continuous duty applications and provides a voltage rating of 115/230 volts. The ODP enclosure ensures protection against moisture and dust, making it suitable for various environments.

• 1/3 horsepower
• Continuous duty rated
• Cradle mount with ODP enclosure

Product Highlights

This motor is ideal for applications needing compact power with consistent efficiency.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D13CP3PH9

Technical Specifications

• Hz: 60
• RPM: 1200
• Voltage Rating: 115/230
• Frame: 56H
• Weight: 25.6 LB
• Service Factor: 1.35
• Full Load Amps: 4.4/2.3
• Full Load Efficiency: 66.6%
