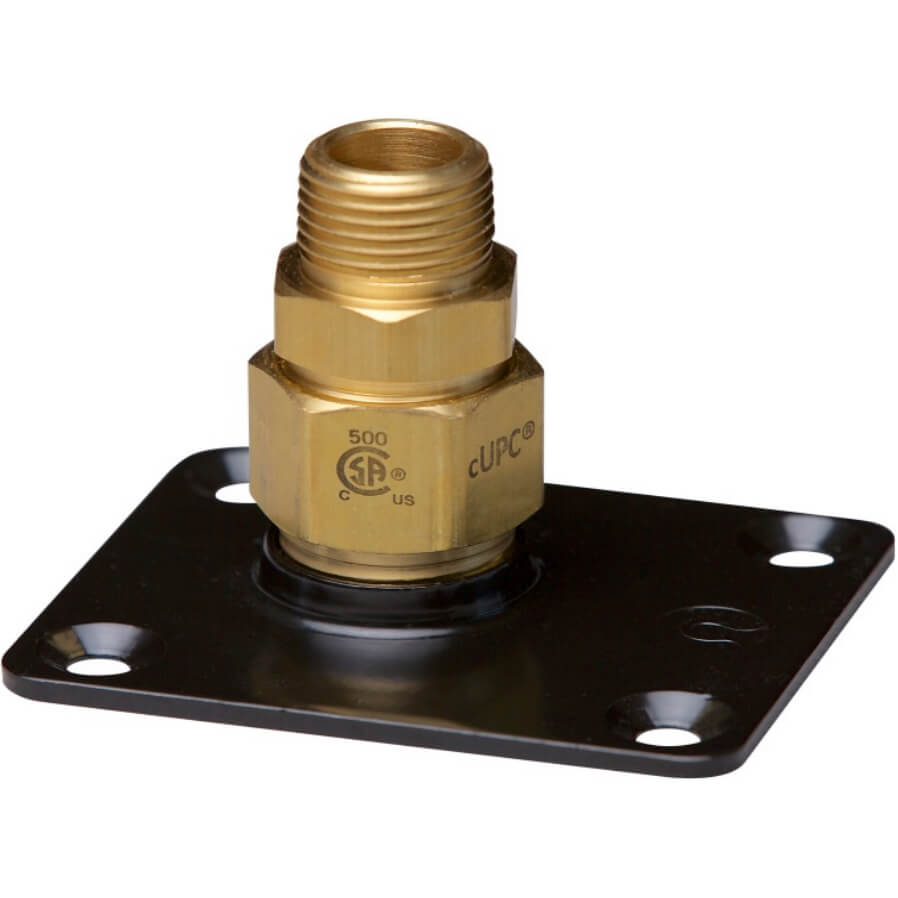

TracPipe FGP-RFG-500 1/2 Autoflare Retangular Steel Flange Adapter

Product Description

The TracPipe FGP-RFG-500 is a 1/2 inch AutoFlare rectangular steel flange adapter. This fitting connects TracPipe CounterStrike to traditional gas fittings and appliances without the need for special tools. It serves as a termination fitting between TracPipe or CounterStrike tubing and NPT threads. It is suitable for indoor, outdoor, and concealed location applications.

• Male NPT thread for secure connection
• Self-piloting design simplifies installation
• Made from yellow brass with stainless steel components

Product Highlights

This fitting features a yellow brass nut, an adapter, and split rings, along with a stainless steel insert. It is designed to operate at pressures up to twenty-five PSIG and temperatures ranging from negative twenty to two hundred degrees Fahrenheit.

Product Information

Standard Information

• Brand: TracPipe Ftgs
• Product Type: Flange

Technical Specifications

• Size: 1/2 inch
• Material: Brass
• Weight: 0.6 lbs
• Shipping Dimensions: 3.25 x 3.25 x 2.75 inches
• Operating Pressure: 25 PSIG
• Operating Temperature Range: -20 to 200 Deg F
