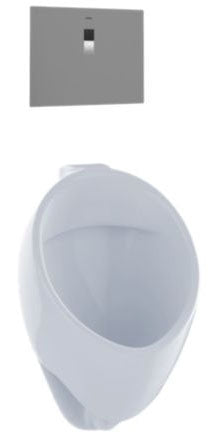

Toto UT105UV#01 Wall-Mount ADA Compliant 0.125 GPF Urinal with Back Spud

Product Description

The Toto UT105UV#01 is a wall-mount urinal designed for optimal water conservation. This model operates with a flush volume of 0.125 gallons per flush and features a back spud for easy installation. Its compact design is ideal for commercial restroom applications, meeting ADA guidelines for accessibility.

• Compact design, suitable for tight spaces
• WaterSense certified, promoting water efficiency
• Concealed integral trap to prevent odors

Product Highlights

This urinal is engineered for performance with TOTO ECOPOWER flush valves, enhancing efficiency while saving water.

Product Information

Standard Information

• Brand: Toto
• MPN: UT105UV#01

Technical Specifications

• Type: Compact, Washout Flush Action
• Material: Vitreous China
• Height: 21.25 inches
• Width: 13 inches
• Depth: 14.25 inches
• Inlet Connection: 3/4 inch IPS
• Outlet Connection: 2 inch IPS Female Threaded
• Gallons Per Flush: 0.125
• Recommended Working Pressure: 15 PSI (Flowing Water)
• Rough-In: 12-1/4 inches
• Applicable Standards: ADA, ASME A112.19.2/CSA B45.1, IAPMO/CUPC, UPC, IPC, NSPC, NPC
