Toto TEU1GA12#CP Urinal Flush Valve EcoPower 1 GPF

Product Description

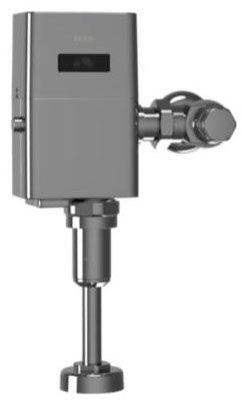

The Toto TEU1GA12#CP is an eco-friendly urinal flush valve designed for efficient and automatic operation. This valve utilizes hydroelectric technology to function without an external power source, providing a sustainable solution for commercial and public restrooms. With a flow rate of one gallon per flush, it meets both functionality and environmental standards.

• Self-powered hydroelectric system
• Automatic infrared sensor for hands-free use
• Durable cast bronze material with polished chrome finish

Product Highlights

This flush valve is ideal for high-traffic areas, ensuring efficient water usage while preventing ghost flushing.

Product Information

Standard Information

• Brand: Toto
• Model: TEU1GA12#CP

Technical Specifications

• Type: Self-Powered, Hydroelectric
• Actuation Type: Automatic Infrared Sensor
• Body Configuration: Top Spud
• Inlet Size: 3/4 Inch
• End Connection: Threaded Inlet
• Spud Size: 3/4 Inch
• Body Material: Polished Chrome Cast Bronze
• Flow Rate: 1 GPF
• Inclusions/Features: 3/4 Inch Angle Stop, 3/4 Inch Vacuum Breaker, 360 Degree Filter Screen, Self-Adjusting Detection Range, Neutral Rough-In, True Mechanical Flush Override, Adjustable Tail Piece Connection
• Applicable Standards: ADA, ASSE 1037, CSA B125.3, IAPMO/CUPC, IPC, NSPC, NPC Canada
• Operating Temperature Rating: 32 to 104 Deg F
• Supply Water Pressure Rating: 15 to 125 PSI
