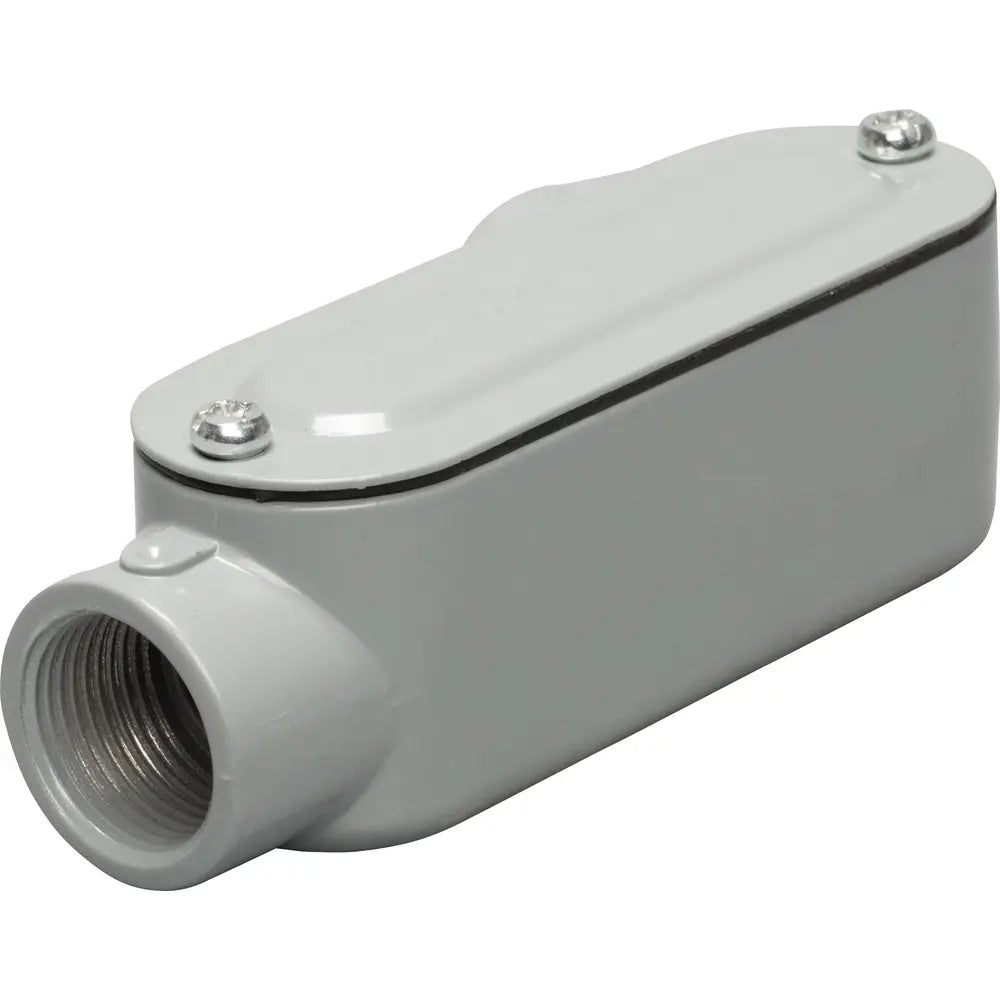

Topaz LR5CG Rigid Conduit Body 1-1/2 Threaded Cover and Gasket

Product Description

The Topaz LR5CG is a 1-1/2 inch rigid conduit body designed for easy access to conductors for splicing, pulling, and maintenance. This threaded LR type conduit body comes with a cover and gasket to provide sealed protection. It is ideal for use in various electrical installations where access needs to be managed and is made from durable materials for long-term reliability.

• Constructed with die-cast aluminum and neoprene rubber for strength.
• Compatible with rigid conduit installations.
• UL and CSA certified for safety compliance.

Product Highlights

This conduit body allows easy access for maintenance while keeping electrical connections protected.

Product Information

Standard Information

• Brand: Topaz
• Manufacturer: Topaz

Technical Specifications

• MPN: LR5CG
• Trade Size: 1-1/2 inch
• Hub Size: 1-1/2 inch
• Length: 7.89 inches
• Width: 3.39 inches
• Height: 2.77 inches
• Weight: 1.46 pounds
• Connection Type: Threaded
• Material: Die-Cast Aluminum
• Gasket Material: Neoprene Rubber
• Includes: Cover, Gasket
• Application: Pulling, Splicing, Maintenance
• Warning: WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
