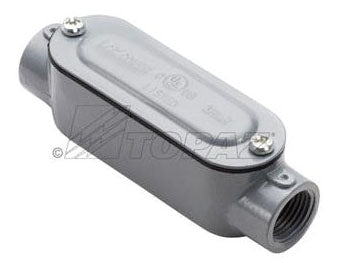

Topaz C5CG 1-1/2 Aluminum Rigid Conduit Body

Product Description

The Topaz C5CG is a 1-1/2 inch aluminum rigid conduit body designed for strength and reliability. This conduit body features a powder-coated, die-cast, copper-free aluminum construction that ensures durability in various applications.

• UL (Canada and US) certified for safety.
• Includes tapered threaded hubs for secure installation.
• Dimensions: Eight point five two eight inches in length, two point four nine inches in width, and two point seven seven inches in height.

Product Highlights

The Topaz C5CG conduit body is built for use with rigid conduit. Ideal for various electrical installations, it provides robust support for wiring management.

Product Information

Standard Information

• Brand: Topaz Electric Corp.
• Manufacturer: Topaz Electric Corp.

Technical Specifications

• Type: C Type Rigid Conduit Body
• Material: Die-Cast Aluminum
• Width: 2.49 inches
• Height: 2.77 inches
• Length: 8.528 inches
• Hub Size: 1.5 inches
• Connection: 1-1/2 FNPT IN
• Gasket Material: Neoprene Rubber
• Cover Material: Stamped Steel
• Number of Conductors: 3
• Wire Size: 2 AWG
