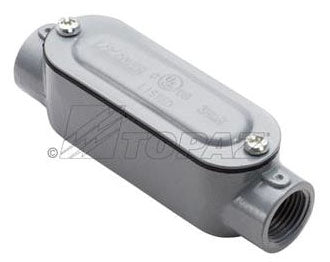

Topaz C2CG 3/4 Aluminum Rigid Conduit Body

Product Description

The Topaz C2CG is a 3/4 inch aluminum rigid conduit body made from die-cast copper-free aluminum. Designed for use with rigid conduit, this conduit body features tapered threaded hubs for secure installation. It measures five point fifty-seven inches in length, one point fifty-four inches in width, and one point six two five inches in height. Manufactured by Topaz Electric Corp, this product meets UL and CSA standards.

• Made from powder-coated die-cast aluminum
• Designed for two conductors with a wire size of six AWG
• Complies with multiple safety standards including UL 514B

Product Highlights

This conduit body allows for easy pulling, splicing, and maintenance in various applications, including concrete and wet locations.

Product Information

Standard Information

• Brand: Topaz Electric Corp.
• UPC: 751338199118

Technical Specifications

• Length: 5.57 inches
• Width: 1.54 inches
• Height: 1.625 inches
• Gasket Material: Neoprene Rubber
• Cover Material: Stamped Steel
• Hub Size: 0.75 inches
• Number of Conductors: 2
• Connection: 3/4 FNPT IN
