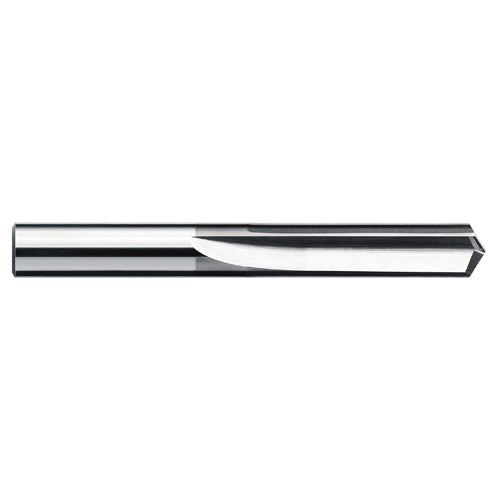

TITAN USA TITUS-TC19702 Straight Flute Drill Bit #2 Drill - Wire 0.221 in Drill - Decimal Inch

Product Description

TITAN USA Straight Flute Drill Bit, MPN TITUS-TC19702 is designed for precision drilling. This bit features a #2 wire size and a 0.221 inch diameter. It is made from solid carbide, which ensures durability and efficient cutting through various materials.

• Drill size: #2, 0.221 inch diameter
• Overall length: 2-1/2 inches with a cutting depth of 1-1/4 inches
• Two flutes provide effective chip removal

Product Highlights

This drill bit is ideal for use in metalworking and can handle tough materials. Its construction is optimized for high strength and precision.

Product Information

Standard Information

• Brand: TITAN USA
• MPN: TITUS-TC19702

Technical Specifications

• Cutting Direction: Right Hand
• Cutting Edge Material: Solid Carbide
• Drill Diameter Measurement System: Imperial
• Finish: Uncoated
• Flute Length: 1-1/4 inches
• Flute Type: Straight
• Overall Length: 2-1/2 inches
• Point Angle: 140 degrees
• Point Type: Split
• Series: 195
• Shank Size: 0.221 inches
• Shank Type: Straight
• Drill Size - Wire: #2
• Drill Size - Decimal Inch: 0.221 inches
• Cutting Depth: 1-1/4 inches
• Number of Flutes: 2
• Material: Solid Carbide
• Applicable Materials: Cobalt Base Alloy, Nickel Base Alloy, Iron Base Alloy, Monel, Titanium Alloy, Stainless Steel, High Strength Tool Steel, Medium Alloy Steel, Carbon Steel, Ductile, Cast Iron, Aluminum, Magnesium, Copper, Copper Alloy, Brass, Bronze and Composites
