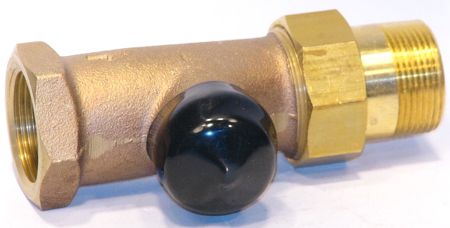

Honeywell V110D1024 Thermostatic Valve Body 1-1/4 Inch Straight W/IPS Union

Product Description

The Honeywell V110D1024 Thermostatic Valve Body 1-1/4 Inch Straight W/IPS Union is designed for precise control of room temperature by modulating the flow of hot water or steam through heating systems. Engineered with a straight pattern and a nickel-plated bronze body, this valve provides reliable functionality and durability.

• Designed for high-capacity heating systems
• Valve seat disc made of EPDM for tight shut-off
• Compatible with T104 thermostatic actuators

Product Highlights

This valve body ensures tight shut-off in steam and hot water systems, providing automatic room temperature control in two-pipe systems. The nickel-plated bronze body and resilient EPDM valve seat disc ensure durability and reliable performance under high pressure.

Product Information

Standard Information

• Brand: Honeywell
• Model: V110D
• MPN: V110D1024

Technical Specifications

• Type: Straight Pattern
• Series: V110D
• Material: Nickel Plated Bronze
• End Style: Threaded
• Dimensions: 5-7/8 inches L
• Nominal Size: 1-1/4 Inch
• Actuator Type: T104 Thermostatic
• Pressure Rating: 150 psi Hot Water, 15 psi Steam
• Heating Capacity: 193000 BtuH
• Coefficient of Volume: 8 Cv
• Weight: 3.00 lbs
• Connection: NPT
• Application: Hot Water, Steam
• Max Pressure: 15 psi WSP, 125 psi WOG
• Piping Configuration: Straight
• Country of Origin: United States
