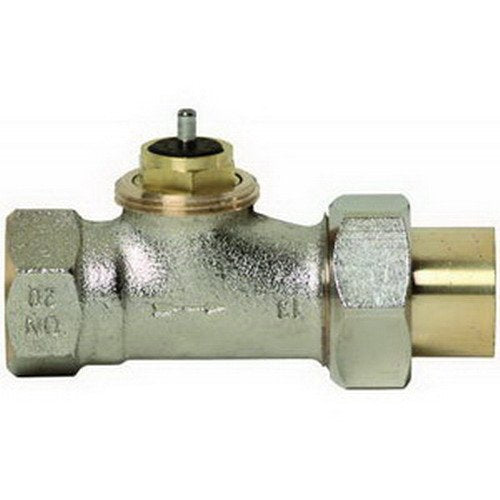

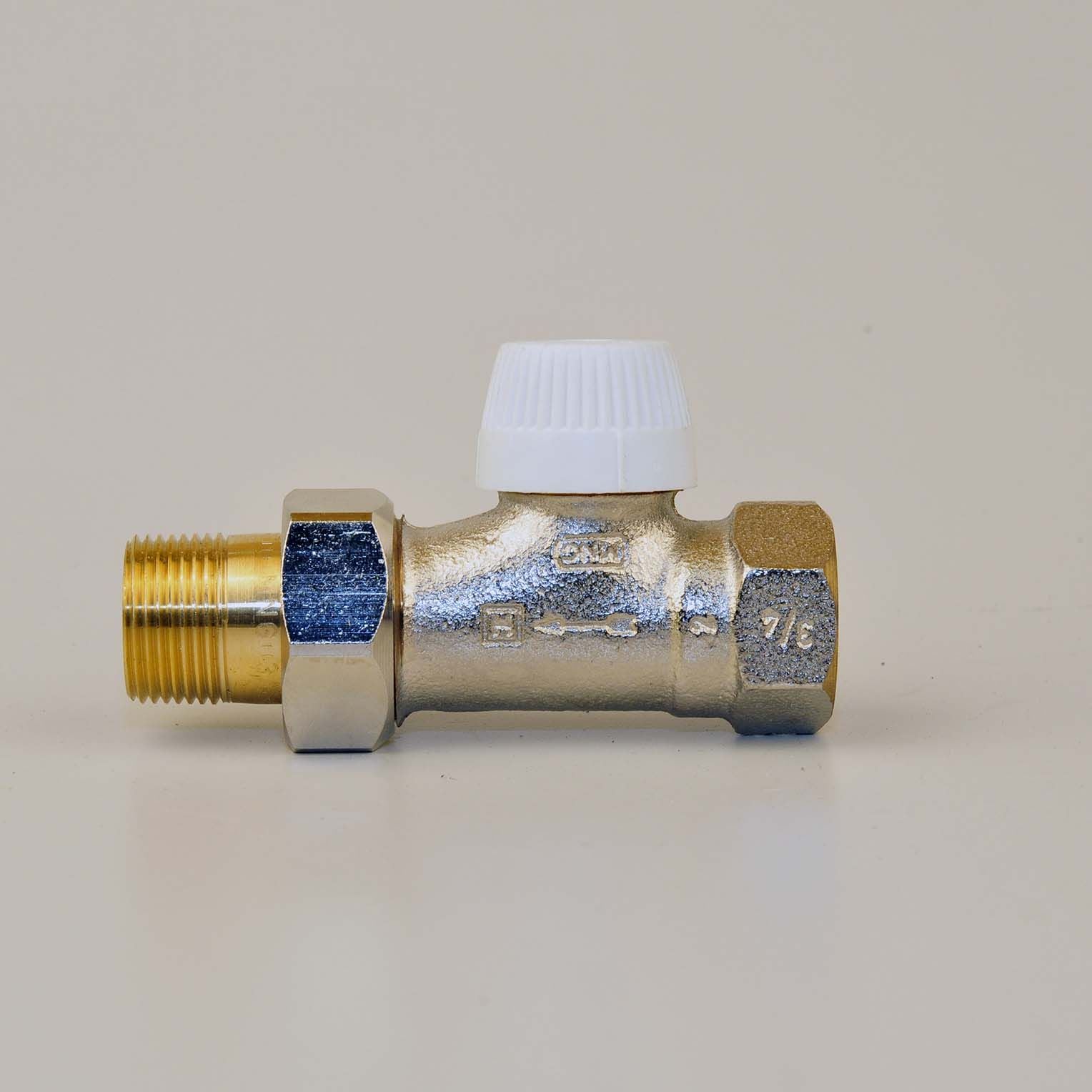

Honeywell V2040DSL20 Thermostatic Valve 3/4 Inch NPT 2.7 Cv 63800 BtuH Replacement V100D1064

Product Description

The Honeywell V2040DSL20 Thermostatic Valve with MPN V2040DSL20 provides effective and automatic temperature control in one-pipe steam or hot water systems. Designed for freestanding radiators and other heating units, it ensures consistent comfort and energy savings.

• Monitors and adjusts room temperature
• Nickel-plated brass body
• Replaceable cartridge

Product Highlights

This valve continually monitors and adjusts the room temperature to provide consistent comfort and relief from both under-heating and overheating. The adjustable balancing cartridge design made from resilient material ensures a tight shut-off on steam and hot water systems. The valve features a replaceable cartridge for easy maintenance and comes with a steam air vent for efficient control.

Product Information

Standard Information

• Brand: Honeywell
• Model: V100D

Technical Specifications

• Weight: 0.85 lbs
• Valve Type: Straight Pattern
• Finish: Nickel Plated
• Material: Brass
• Connection: NPT
• Nominal Size: 3/4 Inch
• Pressure Rating: 15 psi WSP, 125 psi WOG
• Heating Capacity: 63800 BtuH
• Coefficient of Volume: 2.7 Cv
• Temperature: 248 deg F
• Country of Origin: United States
