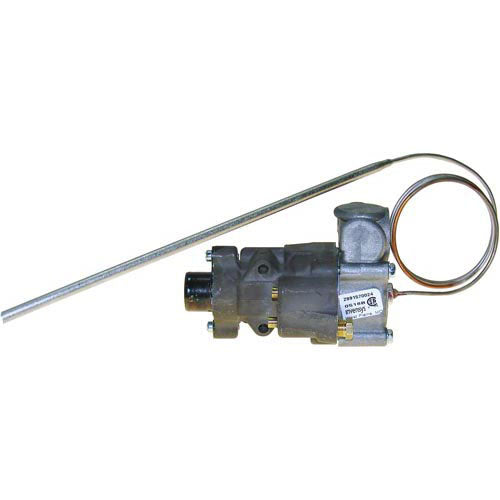

Thermostat BJWA 24 (3/16 X 12) 417424-000G2 for Vulcan Hart 417424-000G2

Product Description

This item for Vulcan Hart MPN 417424-000G2 is a thermostat designed for specific cooking equipment. It features a bulb size of three-sixteenths inches by twelve inches and operates at a temperature range from two hundred fifty to five hundred degrees Fahrenheit.

• Bulb Size: 3/16 inches x 12 inches
• Temperature Range: 250°F to 500°F
• Capillary Length: 24 inches

Product Highlights

This thermostat is useful for managing heat in various Vulcan Hart cooking appliances. It includes a by-pass adjustment at the top and gas inlet designed downward. This design aids in precise temperature control.

Product Information

Standard Information

• Type: BJWA
• Rotation: 90 CCW, body right

Technical Specifications

• Dim Weight: 0.33 lb
• Weight: 0.81 lb
• Length: 12.5 inches
• Width: 2 inches
• Height: 2.7 inches
• Outlet Positions: See BJ outlet positions viewed from rear
• Red Dial Replacement: Use #22-1335
• Compatible Models: 481FLT, 148L, 148LC, 160L
